TWN4 MultiTech 2 LF PCB, with integrated 125kHz antenna

Product code: EL-T4BO-F4 /Manufacturer: ELATEC /Produktový kód: T4BO-F4

el-t4bo-f4 rfid-reader-twn4-multitech-2-lf-obrazek

99.00 EUR Without VAT

On request When do I get the item?

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 12 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

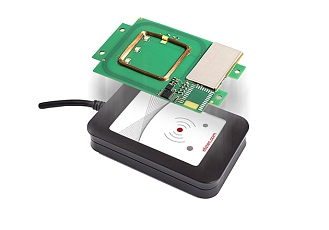

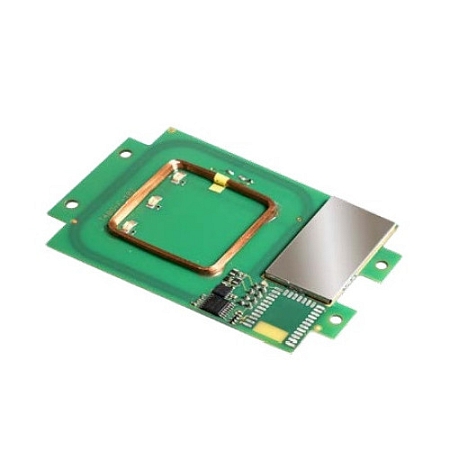

TWN4 MultiTech 2 LF PCB, with integrated 125kHz antenna

Our multi-frequency RFID modules are designed for integration into machines or other devices. They are offered in various sizes and can be connected to external antennas through cables or printed circuit boards. Depending on the machine size this can be an important space saving feature. Just like our standard TWN4 MultiTech readers, these modules support all current RFID technologies.

• 125kHz, 134.2kHz (LF)
• TWN4 multi frequency all-in-one reader/writer
• Compact design 88 x 56 x 18mm - integrated antenna

Available options:

T4DO-F-P                         TWN4 MultiTech-P OEM PCB - Version P - OEM PCB  76x49x14mm, with integrated 125kHz+13.56MHz antenna; Version P
T4DO-F-PI             TWN4 MultiTech-PI OEM PCB - Version PI - OEM PCB  76x49x14mm, with integrated 125kHz+13.56MHz antenna; Version PI
T4DT-FB2BEL           TWN4 MultiTech DT-U20-b - Standard - Desktop, black, USB cable 2.0m, with integrated 125kHz+13.56MHz antenna
T4DT-FB2WEL         TWN4 MultiTech DT-U20-w - Standard - Desktop, white, USB cable 2.0m, with integrated 125kHz+13.56MHz antenna
T4DT-FR2BEL           TWN4 MultiTech DT-9pol-b - Standard - Desktop, black, RS232 cable 2.0m, with integrated 125kHz+13.56MHz antenna
T4DT-FR2WEL          TWN4 MultiTech DT-9pol-w - Standard - Desktop, white, RS232 cable 2.0m , with integrated 125kHz+13.56MHz antenna
T4DT-FB2BEL-P     TWN4 MultiTech-P DT-U20-b  - Version P - Desktop, black, USB cable 2.0m, integrated 125kHz+13.56MHz antenna; Version P
T4DT-FB2WEL-P   TWN4 MultiTech-P DT-U20-w - Version P - Desktop, white, USB cable 2.0m, integrated 125kHz+13.56MHz antenna; Version P
T4DT-FR2BEL-P     TWN4 MultiTech-P DT-9pol-b  - Version P - Desktop, black, RS232 cable 2.0m, integrated 125kHz+13.56MHz antenna; Version P
T4DT-FR2WEL-P   TWN4 MultiTech-P DT-9pol-w - Version P - Desktop, white, RS232 cable 2.0m , integrated 125kHz+13.56MHz antenna; Version P
T4DT-FB2BEL-PI   TWN4 MultiTech-PI DT-U20-b - Version PI - Desktop, black, USB cable 2.0m, integrated 125kHz+13.56MHz antenna; Version PI
T4DT-FB2WEL-P   TWN4 MultiTech-PI DT-U20-w - Version PI - Desktop, white, USB cable 2.0m, integrated 125kHz+13.56MHz antenna; Version PI
T4DT-FR2BEL-PI   TWN4 MultiTech-PI DT-9pol-b - Version PI - Desktop, black, RS232 cable 2.0m, integrated 125kHz+13.56MHz antenna; Version PI
T4DT-FR2WEL-PI TWN4 MultiTech-PI DT-9pol-w -Version PI - Desktop, white, RS232 cable 2.0m , integrated 125kHz+13.56MHz antenna; Version PI

Product prices on request.

More information can be found in the attached datasheet.
