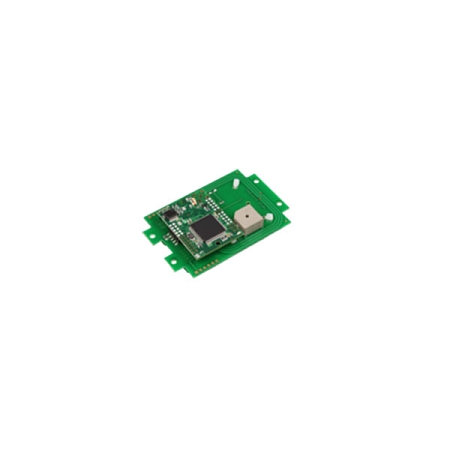

TWN4 MultiTech LEGIC 45, integrated 125kHz+13.56MHz antenna

Product code: EL-T4DO-B-5 /Manufacturer: ELATEC

213.00 EUR Without VAT

On request When do I get the item?

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 12 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

TWN4 MultiTech LEGIC 45

  • available as PCB or housed device
  • LEGIC chip for reading LEGIC RFID standards
  • support of segment initialization function
  • supports TWN4 MultiTech underlying technology
  • three frequencies: 125/134.2 kHz, 13.56 MHz
  • wireless (re)programmable
  • integrated antennas
  • USB, RS232, TTL serial (logical level 3.3 V,CMOS 5 V tolerant), I²C, SPI, Clock/Data, Wiegand, CAN, 1-Wire
  • two on-board SAM sockets (Secure Access Module)
  • CCID and PC/SC 2.01
  • 2 GPIOs (General Purpose Input/Output)

Available options:

T4DO-B-5               TWN4 MultiTech LEGIC 45 OEM PCB - Standard - OEM PCB  76x49x14mm, integrated 125kHz+13.56MHz antenna; Standard
T4DO-B-5P             TWN4 MultiTech-P LEGIC 45 OEM PCB - Version P - OEM PCB  76x49x14mm, integrated 125kHz+13.56MHz antenna; Version P
T4DT-BB2BEL-5    TWN4 MultiTech LEGIC 45 DT-U20-b - Standard - Desktop, black, USB cable 2.0m, integrated 125kHz+13.56MHz antenna; Standard
T4DT-BB2WEL-5   TWN4 MultiTech LEGIC 45 DT-U20-w - Standard - Desktop, white, USB cable 2.0m, integrated 125kHz+13.56MHz antenna; Standard
T4DT-BR2BEL-5      TWN4 MultiTech LEGIC 45 DT-9pol-b - Standard - Desktop, black, RS232 cable 2.0m, integrated 125kHz+13.56MHz antenna; Standard
T4DT-BR2WEL-5   TWN4 MultiTech LEGIC 45 DT-9pol-w - Standard Desktop, white, RS232 cable 2.0m , integrated 125kHz+13.56MHz antenna; Standard
T4DT-BB2BEL-5P  TWN4 MultiTech-P LEGIC 45 DT-U20-b - Version P - Desktop, black, USB cable 2.0m, integrated 125kHz+13.56MHz antenna; Version P
T4DT-BB2WEL-5P TWN4 MultiTech-P LEGIC 45 DT-U20-w - Version P - Desktop, white, USB cable 2.0m, integrated 125kHz+13.56MHz antenna; Version P
T4DT-BR2BEL-5P  TWN4 MultiTech-P LEGIC 45 DT-9pol-b - Version P - Desktop, black, RS232 cable 2.0m, integrated 125kHz+13.56MHz antenna; Version P
T4DT-BR2WEL-5P TWN4 MultiTech-P LEGIC 45 DT-9pol-w - Version P - Desktop, white, RS232 cable 2.0m , integrated 125kHz+13.56MHz antenna; Version P

Product prices on request.

More information can be found in the attached datasheet.
