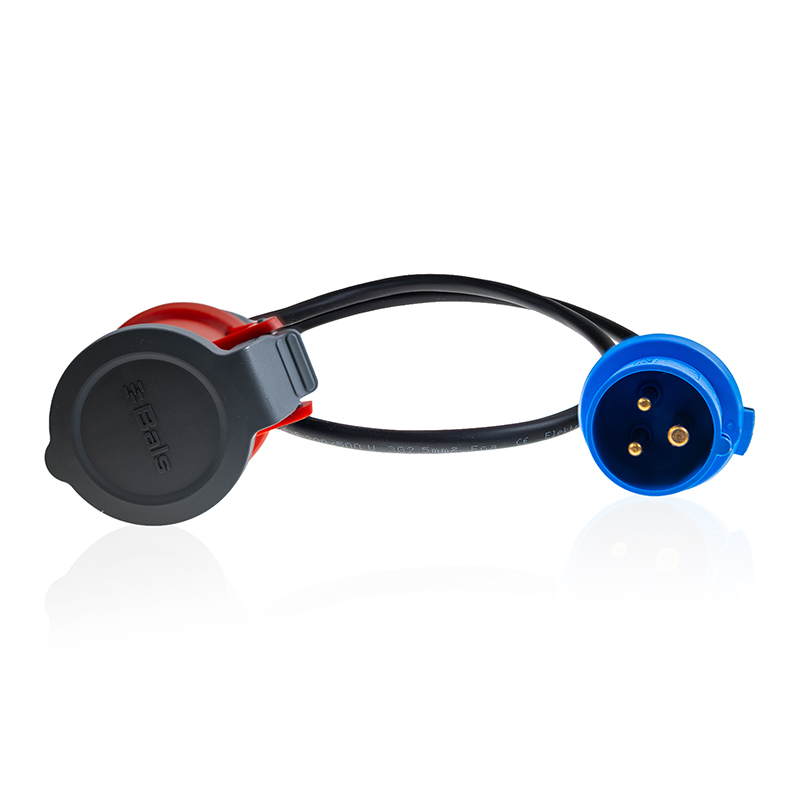

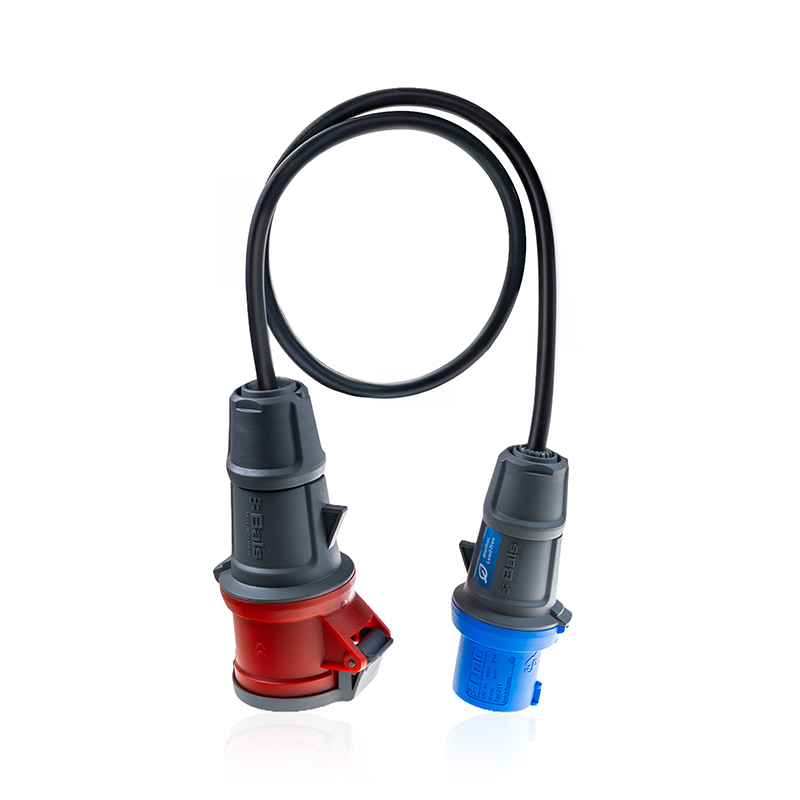

Adaptor CEE 5pin 16A - CEE 3pin 16A 230V 1m

Product code: EL-CEE5-CEE3-16-16A /Manufacturer: SECTRON

el-cee5-cee3-16-16a-01 el-cee5-cee3-16-16a-03 el-cee5-cee3-16-16a-02

24.50 EUR Without VAT

In stock When do I get the item?

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Adapter for connecting the mobile SECTRON AC CHARGER 16A to the CEE 3pin 16A 230V socket

Have you bought an electric car and wonder how to charge it? You can’t use Wallbox or find it an expensive solution? We offer you our smart charger with charging power regulation and CEE 5-pin 16A 400V terminal. We have also prepared a number of adapters for this charger that allow you to charge your car almost everywhere.

Do you like camping? We have an adapter for you which will make your life with an electric car easier. Thanks to this adapter, you can charge your electric car in campsites and ports, where a blue CEE 3-pin 16A camping socket is used. You can adapt the end of the CEE 5-pin 16A 400V pin smart portable charger to a CEE 3-pin 16A 230V camping socket, so you can use the camping sockets.

Using this adapter with the CEE 3-pin 16A 230V connector, our portable charger (mobile wallbox SECTRON AC CHARGER) can be connected to the mains with a CEE 3-pin 16A 230V socket.

SET adapter with our portable charger (mobile wallbox SECTRON AC CHARGER) will make charging from a 16 A socket to a vehicle with a Type 2 socket – Mennekes possible. With this equipment, the places for charging your electric car will be expanded to wherever there is a 1-phase socket with adequate protection.

The charging set must be dimensioned according to the size of the 6-16 A circuit breaker. It is suitable for charging electric cars of European brands. The cable length is 1 m.

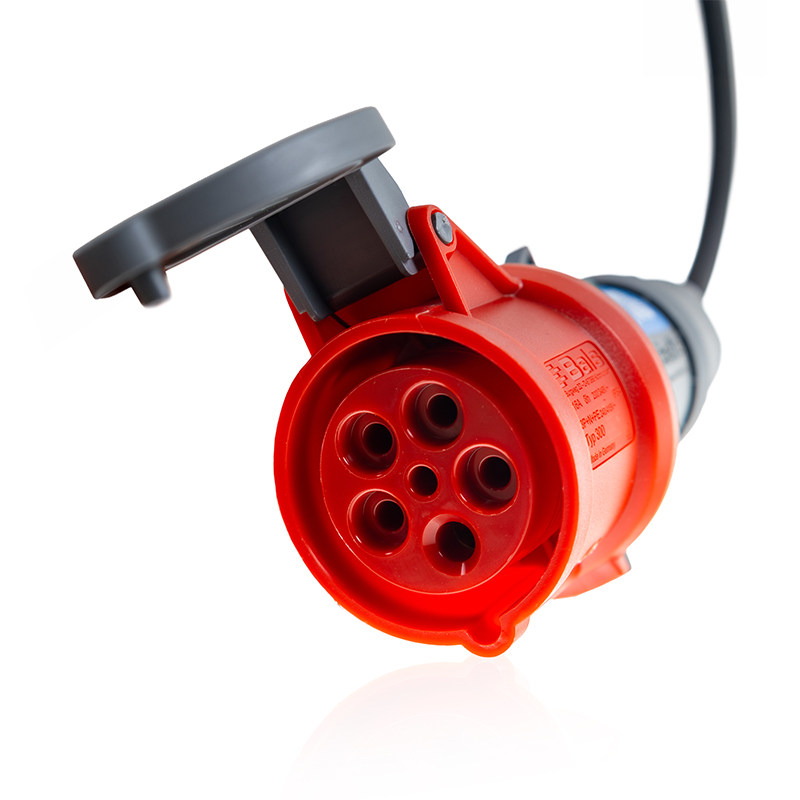

Specifications of CEE 5-pin 16A 400V plug, red marking:

• Fork angle: straight
• IEC current: 16 A
• Protection (IP): IP44 resistant to dust and splashing water
• Material: plastic
• Voltage according to. EN 60309-2: 400 V (50 + 60Hz) red
• Number of poles: 5
• Earth contact position: 6 h

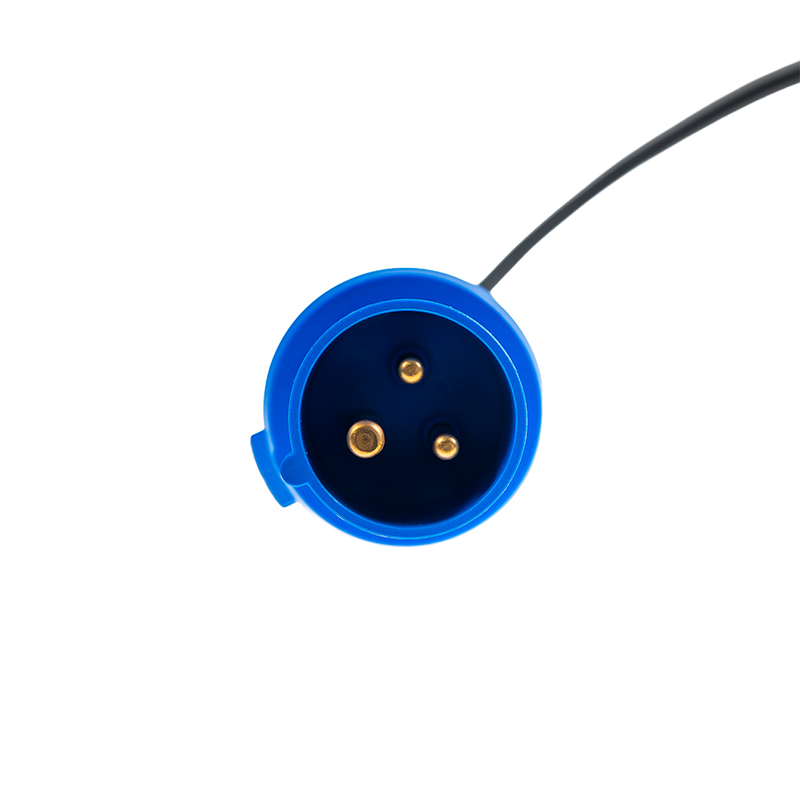

CEE 3-pin 16A 230V plug specification, blue marking:

• Fork angle: straight
• IEC current: 16 A
• Voltage according to. EN 60309-2: 230V (50 + 60Hz) blue
• Material: plastic
• Protection (IP): IP44 resistant to dust and splash water
• Number of poles: 3
• Earth contact position: 6 h

Cable specifications:

• Outer shell color: black
• Casing material: rubber
• Voltage U: 500 V
• Voltage U0: 300 V
• Number of cores: 3
• Conductor cross section: 2.5 mm2
• With protective conductor: yes
• Shielding: no
• Wire class: Class 5 = flexible

Before charging, check with the operator about the value of the circuit breaker and the available current, which you can set on the SECTRON AC CHARGER mobile wallbox using the current limiting function. To schedule charging at night, please use the delayed start function.
