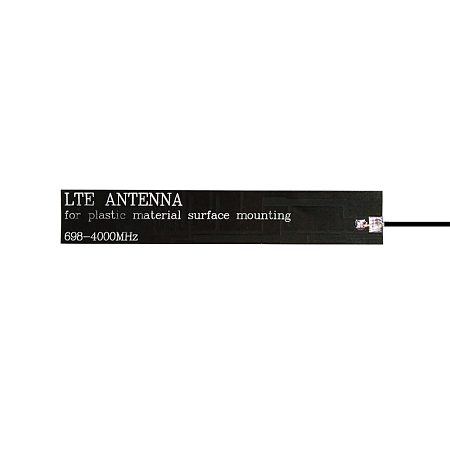

Omnidirectional internal adhesive LTE and 5G antenna
Omnidirectional internal adhesive antenna designed for receiving/transmitting LTE and 5G signal reception. The antenna operates in the bands 700/800/960/1700/2100/2400/2700/3300/3600 MHz. It is adjusted and ready for the upcoming ' >5G technology. It is suitable for use in the field of M2M as well as in IoT devices and IoT systems. The antenna includes an RF 1.13 cable, which is terminated with a U.FL connector. It comes with 3M sticker for easy assembly.
Cable specifications RF 1.13:
The RF 1.13 coaxial cable is compatible with connectors that are applicable to a 1.13mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. The characteristic impedance of the cable is 50 Ω. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments.
Connector specifications U.FL:
U.FL connectors are used in cases where there is very little space for connecting / interconnecting RF components eg in wireless communication devices, electronic measuring instruments, mobile phones, GPS and wireless LANs. Gold-plated central contact of the U.FL connector improves its properties. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 6 GHz.
Technical parameters can be found in the attached datasheet.
