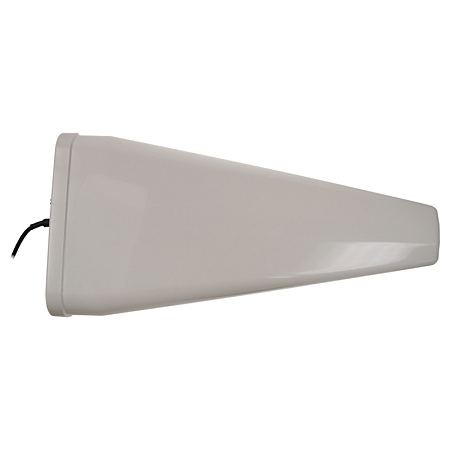

WiFi/LTE Directional broadband mounting antenna

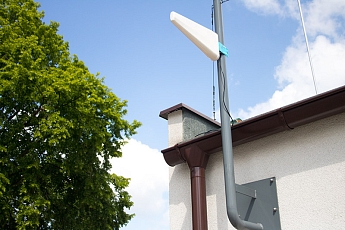

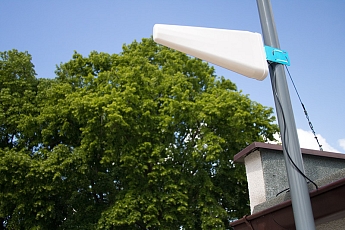

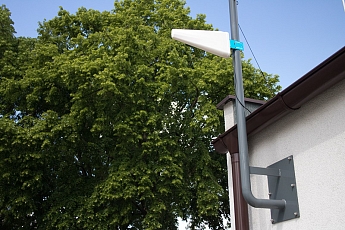

Directional broadband mounting antenna situated for receiving/transmitting signals in WLAN and LTE technology. Operates in two frequency bands 698-960/1710-2700 MHz. The antenna is characterized by high directivity, which means a high gain of 15 dBi. Thanks to its precise construction, this antenna is excellent in its weather resistance which makes it suitable for outdoor installations.
The antenna is supplied with a 5 m RG174/U cable terminated with an SMA (m) connector.

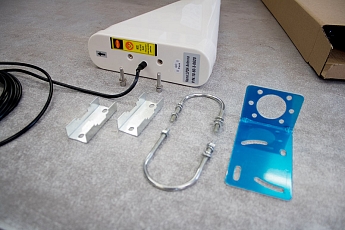

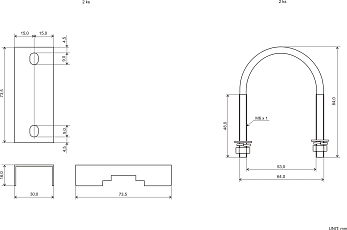

The package contains a holder that ensures a firm and stable attachment of the antenna.
Connector specifications SMA:
These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.
Cable specifications R58:
The RG58 coaxial cable is compatible with connectors applicable to a 5 mm cable diameter. It is mainly used for the 0-1 GHz frequency range, it can also be used for higher frequencies, but at the cost of higher attenuation. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 75 °C. This cable is suitable for external WiFi / GPS / GSM antennas. It is also often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / N / SMA / TNC and others.
Technical parameters can be found in the attached datasheet.
