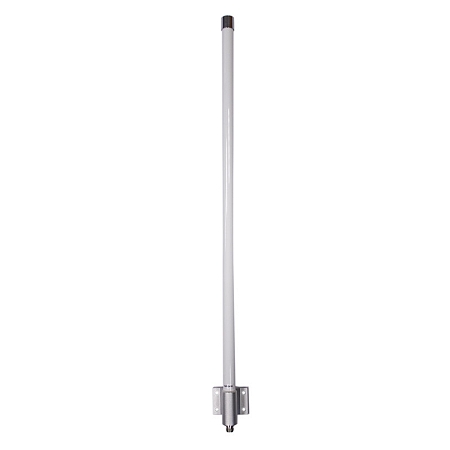

Antenna WiFi OMNI 2410, 2.4 GHz, 10 dBi, N(f)

Product code: AO-1GF-2410 /Manufacturer: SECTRON

ao-1gf-2410-wifi-antena-sectron-01 ao-1gf-2410-wifi-antena-sectron-04 0 ao-1gf-2410-wifi-antena-sectron-03 ao-1gf-2410-wifi-antena-sectron-02 ao-1gf-2410-wifi-antena-sectron-05

49.59 EUR Without VAT

In stock < 10 ks When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional outdoor Wi-Fi antenna

Omnidirectional outdoor antenna with a gain of 10 dBi, working in 2.4 GHz band and is suited for receiving/transmitting Wi-Fi signal. Thanks to its precise construction, this antenna has an excellent weather resistance which makes it suitable for outdoor installations. The antenna is equipped with a N(m) connector.

Connector specifications N:

A connectors with a screw-thread mechanism. N connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 11 GHz. N connectors are used, for example, to connect wireless WLAN devices, satellite systems and GSM / GPS / Wi-Fi antennas.

Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Connector: N(f)
Maximum input power: 50 W max. Polarization: Linear
Execution: External Operational temperature: -40 °C - +80 °C
Dimensions: 890 x 26 mm Storage temperature: -40 °C - +95°C
Directivity: Omni-directional Technology : WiFi
Weight: 554.42 g VSWR: <1.5:1
Radiation angle: H 360° V 10° GAIN: 10 dBi
TYPE OF ATTACHMENT: Mounting
