Connector FAKRA(m) C right angle, THD

Product code: AO-FMTC-01 /Manufacturer: SECTRON

Sale

0.99 EUR Without VAT

In stock When do I get the item?

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

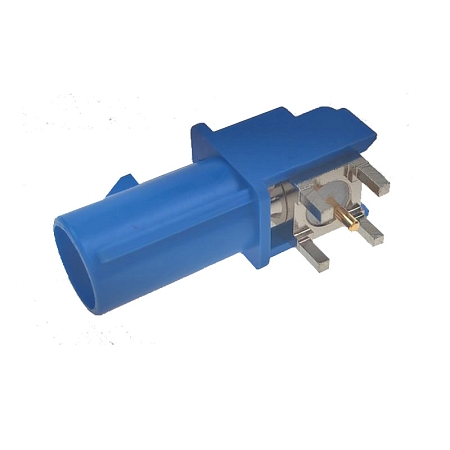

FAKRA connector, C angle, THD

FAKRA connector in a plastic housing. These housings are available in 14 different colours for easy identification. The characteristic impedance of the connector is 50 Ohm, working frequency ranges up to 6 GHz and working temperature is from -40 °C to 105 °C. FAKRA connector is most often used in the automotive industry, for example for connecting antennas, radios and navigation. They are also widely used in M2M and IoT devices. Connecting and disconnecting the FAKRA connector is easy, we guarantee up to 25 cycles.

FAKRA connector type C, angle is designed for mounting and soldering to the panel using the THD method.

Material and finish:

• Body 1: PBT / PBT
• Body 2: brass / nickel
• Body 3: brass / nickel
• Insulation: teflon / teflon
• PIN: beryllium copper / gold

Parameters:

• Type: Male (m)
• Impedance: 50 Ω
• Maximum frequency: 0-6 GHz
• Insulation resistance: 5 000 MΩ
 Voltage working: 335 V
 Mating cycles: 25
• Operating temperature: -40 °C to 105 °C

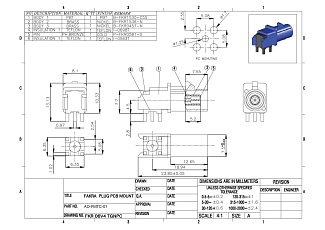

Technical parameters can be found in the attached datasheet or contact our sales department.

Parameters

Connector: FAKRA(m)

Documents for download

AO-FMTC-01_2.pdf (310.928 kB)
