Olife Energy AC LITE - BASE Floor-standing Charging Station, 2 sockets
Key features:
• Czech product
• Ideal AC station for use in companies
• RFID authorization
• Integration with Smart Home Systems
• Low Tariff Charging
• Configuration via mobile application (local Bluetooth)
• Dynamic control of the station's performance using the OlifeEnergy SmartMeter unit
• Function of charging from FVE overflows with an additional solar module

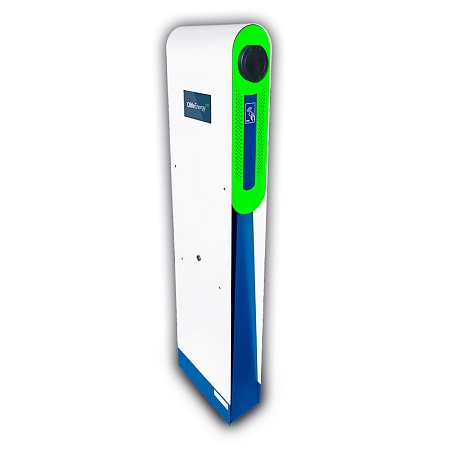

This all-metal AC charging station is a robust and durable version with the same advanced features as the OlifeEnergy DoubleBox BASE. It is designed as a standalone station that can be anchored to the ground. With an IP54 rating, it is resistant and suitable for outdoor use. The all-metal construction provides maximum resistance to weather conditions and vandalism. It is ideal for commercial or public spaces, such as corporate or public parking lots, where high durability and reliability are required. Its design allows for easy installation and maintenance, while the advanced features ensure efficient and safe electric vehicle charging.
AC charging station is a robust, durable Czech-made charging station. Is designed for charging all types of electric cars on the EU market with alternating current (AC). It charges up to 22 kW. It can charge two electric cars at the same time, each with an input of up to 22 kW.
The station includes a 7' color touchscreen that displays key charging information and allows for easy operation.
The electric vehicle charging station is equipped with two sockets. Cables are not included and can be purchased in our e-shop under the category Charging Cables.
The basic version 'BASE' can work locally. Charging therefore starts automatically as soon as the vehicle is connected or after identification with an RFID card. The power of the station can be controlled in the range of 0 - 44 kW by a local unit. The station is equipped with protection against electric current overload. AC charging station can be used for comfortable charging in smaller companies or at home.
Charging control
The total power consumption of the station can be dynamically regulated using the external module OlifeEnergy SmartMeter BASE. SmartMeter is a device that ensures optimal use of the capacity of the electrical connection by measuring the current consumption of the charging station or its sub-circuit and evaluating the available power consumption for the OlifeEnergy charging station. The station then regulates the charging current according to the available power input.
Charging from PV overflows
This AC charging station LITE BASE can be equipped with an OlifeEnergy Solar Module, which enables communication with selected PV inverters (GoodWe (ET series), SOLAX, Dražice, Huawei (SUN2000)) for home photovoltaic power plants (PV) without the need to purchase an OlifeEnergy SmartMeter for main circuit breaker protection.
Specification AC LITE BASE:
• Output connector: 2 x Type 2
• Output power: 0-44 kW
• Control: local - automatic or RFID
• Residual protection: 2 x 4 pole protector type A + rezidual DC current detection (IEC 62955)
• Max. input current: 0-63 A
• Input voltage: 3 x 400 V
• IP rating: IP54
• Operating temperature: od -25 do 40 °C
• Operating humidity: od 5 % do 95 %
• Weight: 65 kg
• Dimensions: 385 x 1350 x 145 mm
Technical parameters can be found in the attached datasheet.
