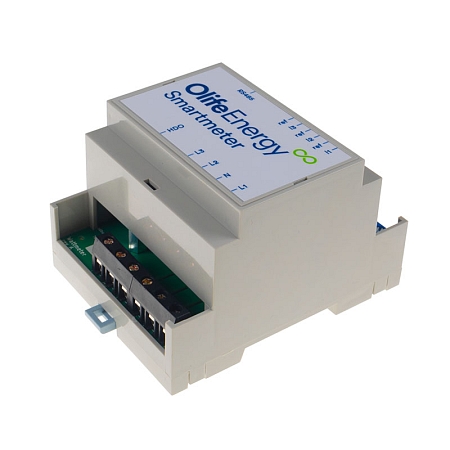

Olife Energy SmartMeter - BASE
The SmartMeter BASE is a device that controls the power on one Wallbox AC 22 kW-BASE charger or a free-standing AC-BASE charging station.
SmartMeter measures the current consumption of the building or its sub-circuit, and evaluates the available power consumption for OlifeEnergy charging stations. It then regulates the charging current according to the available power input. It ensures optimal use of the capacity of the electrical connection and thus prevents overload or mains failure. The measurement is performed indirectly using measuring transformers with a working core. The measuring unit occupies the size of 5 modules in the switchboard (unit + 1 circuit breaker), another 5 modules are occupied by the unit for communication with OlifeEnergyCloud, and is powered from the switchboard by phase voltage 1P + N 230V, in case of power measurement then 3P + N (PEN) 400V / 50Hz. Communication with the station takes place via a serial line using the RS485 bus with the MODBUS RTU protocol, the bus is galvanically isolated. An RJ45 connector is used for connection. The unit is placed in the main switchboard on a DIN rail.
Specifications SmartMeter - BASE:
• Measured values: active power, energy, AC current, AC voltage
• Rated voltage: AC 230/400
• Rated current: 16–120 A regarding transformer used
• Rated grid frequency: 50/60Hz
• Communication interface: insulated, RS485
• Communication protocol: MUDBUS RTU
• Connection: 2,5 mm terminial blocks
• Connection- RS485: RJ45 – FTP, UTP Cat5, Cat6
• Mounting: DIN rail
• Width: 5M (87,5 mm) + 5M for OlifeEnergy Cloud module
• Operating Temperature: -25 to +50 °C
• IP cover: IP 20
Technical parameters can be found in the attached datasheet.
