Olife Energy Doublebox AC 22kW - BASE, two twisted cables Typ 2, length 4 m

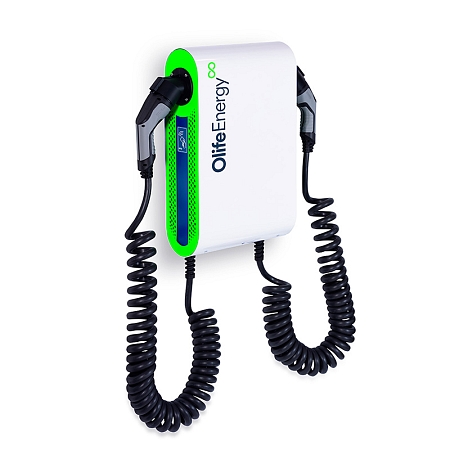

OlifeEnergy DoubleBox BASE is a charging station with two cables twisted Type 2, which is designed for charging all types of electric cars on the EU market with alternating current (AC). It charges up to 22 kW. It can charge two electric cars at the same time, each with an input of up to 22 kW. To shorten the charging time, the station can divide the power input between two charged vehicles according to their needs.
Thanks to the degree of protection IP66, it is durable and suitable for outdoor use and installation in indoor spaces such as garages. It can be mounted on a wall (wallbox) or on a profile that is anchored to the ground (mount field).
The basic version "BASE" can work locally. Charging therefore starts automatically as soon as the vehicle is connected or after identification with an RFID card. The power of the station can be controlled in the range of 0 - 43 kW by a local unit. The station is equipped with protection against electric current overload. DoubleBox can be used for comfortable charging in smaller companies or at home.
The total power consumption of the station can be dynamically regulated using the external module OlifeEnergy SmartMeter BASE. SmartMeter is a device that ensures optimal use of the capacity of the electrical connection by measuring the current consumption of the Wallbox or its sub-circuit and evaluating the available power consumption for the OlifeEnergy charging station. The station then regulates the charging current according to the available power input.
This DoubleBox is equipped with two socket and with two cables twisted Type 2 (Mennekes), which is 4 m long.
The input power cable must be preceded by a Residual Current protective Device type A, with a max. rated current 40 A.
Specification DoubleBox BASE:
• Output connector: 2 x Type 2
• Output power: 22/27/34/43 kW
• Control: local - automatic or RFID
• Residual protection: 2 x 4 pole protector type A + rezidual DC current detection (IEC 62955)
• Max. input current : 32/40/50/63 A
• Input voltage: 3x400 V
• IP rating: IP 66
• Operating temperature: od -25 do 40 °C
• Operating humidity: od 5 % do 95 %
• Weight: 22 kg
• Dimensions: 343 x 550 x 140 mm
OlifeEnergy DoubleBox is offered in BASE and SMART variants. The comparison of both variants is in the table below.
Technical parameters can be found in the attached datasheet.
