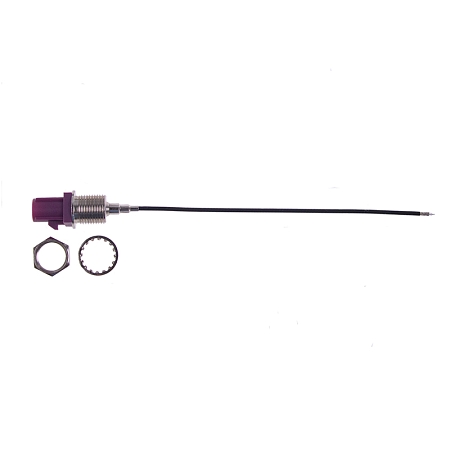

RF cable adaptor FAKRA(m)D/open-end, cable 1.37mm, 95mm visible part

Product code: AM-88-OAPD12 /Manufacturer: SECTRON

am-88-oapd12-01 am-88-oapd12-03 am-88-oapd12-02

3.65 EUR Without VAT

On request When do I get the item?

Price from 10 pieces 3.32 EUR

Price from 100 pieces 2.99 EUR

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

RF cable adaptor FAKRA (m) C/open-end, cable 1.37mm

RF cable reducer (pigtail) series FAKRA (m) D screw, with LP-088 series cable and diameter of 1.37 mm. The adaptor is designed for the frequency range 0-6 GHz. The VSWR value in the entire operating frequency band is max. 1.2:1. You can select any second connector for this reduction.

Connecting and detaching FAKRA connectors is easy, guarantee of  25 cycles.

Cable reducers (pigtails) serve as extensions for connecting eg 2G/3G/LTE/Wi-Fi/GPS antennas to various PCBs, modules, Mini PCI cards, etc.

Parameters:

 Cable type LP-088: diameter 1.37 mm
• Cable length 95 mm, visible part
• Connector A: FAKRA (m) D screw.
• Connector B: optional
• Certification: RoHS
• Weight: 8.28 g

• Frequency range: Up to 6 GHz
• Impedance: 50 Ohm
• Insulation resistance: 5 000 M Ohm
• Max. VSWR: 1.2:1
• Operating temperature: -40 °C to +105 °C

Connector A - FAKRA

Use:

Fakra connectors in a plastic housing. These housings are available in 14 different colors for easy identification. The characteristic impedance of the connector is 50 Ohm, working frequency ranges up to 6 GHz, working temperature is from -40 °C to 105 °C. Fakra connectors are most often used in the automotive industry, for example for connecting antennas, radios and navigation. They are also widely used in M2M and IoT devices. Connecting and disconnecting Fakra connectors is easy, we guarantee up to 25 cycles.

Parameters:

• Frequency range: Up to 6 GHz
• Impedance: 50
• VSWR <1.6:1
• Guaranteed number of connections before deformation: 25
• Operating temperature: -40 °C to +105 °C
• Certification: RoHS

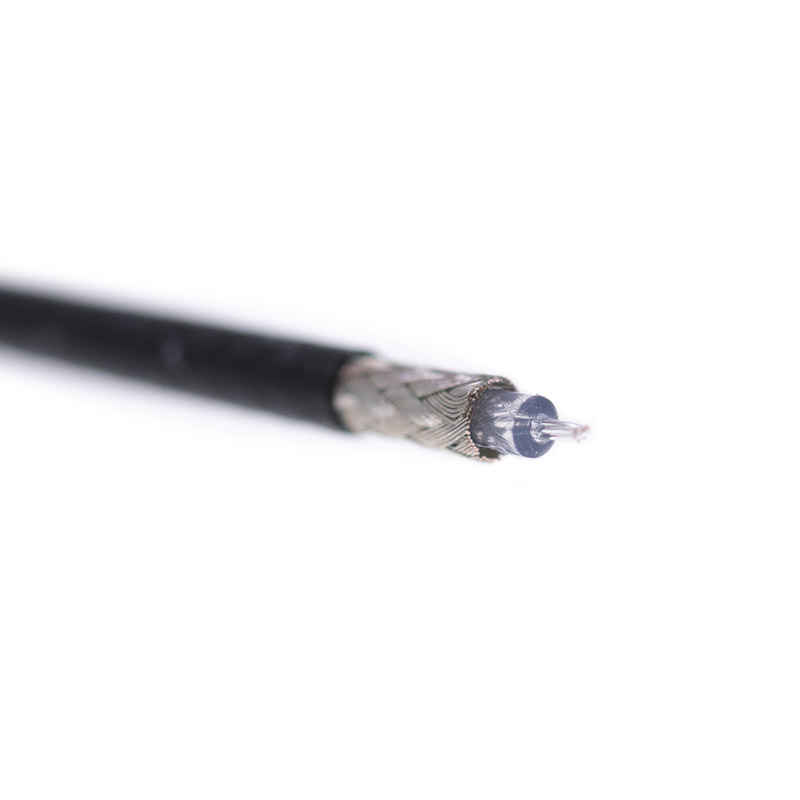

Coaxial cable LP 088

Cable features:

The LP 088 coaxial cable is compatible with connectors that are applicable to a 1.37 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. The characteristic impedance of the cable is 50 Ω. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL/FAKRA/FME/MHF/MCX/MMC/N/QMA/SMA/SMA-RP/SMB/SMP/TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT/NB-IoT/ WiFi/GNSS and other RF devices.

We are a Czech producer of custom cable adaptors. Use our simple configurator to specify your requirements. You can also contact our sales department for advice on choosing the right connector and cable.

The best selling cable adaptors (pigtails) are in stock, contact us or order via e-shop.
