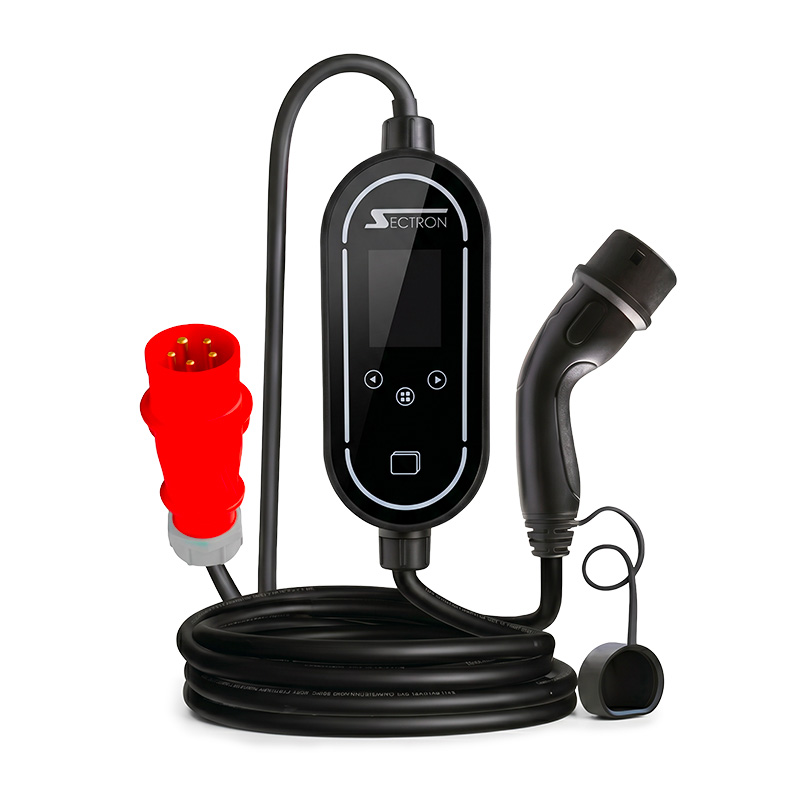

SECTRON NEXUS Portable EV Charger – 16 A, 400 V, CEE 5-pin - Type 2, 10 m Cable
Key features of the SECTRON NEXUS portable charging station:
- Smart remote control: Full charger management via the SECTRON NEXUS mobile application with Bluetooth or Wi-Fi (2.4 GHz) connection.
- Charging authorization: RFID card, PIN code, mobile application and Plug & Charge mode.
- SECTRON EMA: New platform for electromobility management.
- Comprehensive LCD display: Clear 2.4″ screen displays charging status, detailed network parameters, total consumption and error messages.
- Scheduled charging: Set a delayed charging start and plan energy consumption for the period of validity of a cheaper tariff (so-called night current).
- Charging history: Internal memory stores records of the last 30 charging cycles.
- Charging current setting: 6–16 A (power up to 11 kW).
- Safety protection: RCD type B current protection (AC 30 mA, DC 6 mA).
- Durable construction: IP67 protection guarantees protection against dust and immersion in water. The robust cable is flexible and weatherproof.
- Communication interface: Supports OCPP 1.6-J and ModBus TCP load balancing.

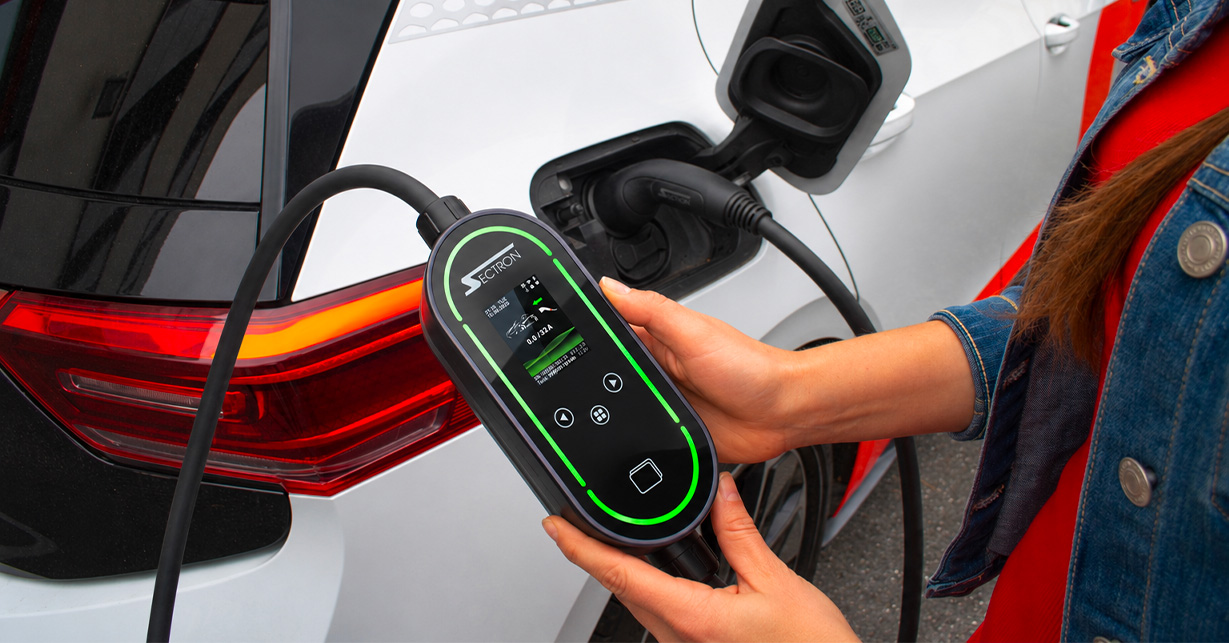

The smart SECTRON NEXUS portable EV charger is a top-tier flexible solution for safely and quickly charging electric vehicles and plug-in hybrids from a three-phase red five-pin CEE 400 V / 16 A outlet. With a maximum output of up to 11 kW and the ability to smoothly adjust the charging current from 6 A to 16 A, you can tailor charging precisely to your electrical installation and available grid capacity.
SECTRON NEXUS Mobile App
Thanks to wireless connectivity via Wi-Fi and Bluetooth, you can fully control the charger through the SECTRON NEXUS mobile app. It provides an overview of charging sessions, statistics, management of multiple stations, and the ability to schedule and start charging cycles. Unlike other portable stations, it also allows you to export charging data for a selected period in PDF or Excel format.
Clear 2.4″ LCD Display and Detailed Diagnostics
Unlike standard charging stations, SECTRON NEXUS is equipped with advanced control and protection electronics and a color 2.4″ LCD display. It shows real-time output power, energy delivered, voltage, current draw per phase, temperature, and the history of charging cycles. This charger includes a Type 2 cable.
Flexible Authorization
Several convenient authorization modes are available to start charging: tapping an RFID card, entering a PIN code, pressing a button in the app, or using the automatic Plug & Charge mode.
OCPP Protocol Support
For advanced corporate and commercial deployment, SECTRON NEXUS supports the standardised OCPP 1.6-J communication protocol.
Comprehensive Platform for Charging Station Management and Monitoring
SECTRON EMA offers centralised charging management, monitoring, remote device administration, user management, energy consumption overview, and advanced authorisation options. The platform is suitable for companies building internal charging infrastructure, municipalities developing public charging networks, and fleet operators.
Durable Design and Easy Installation
Thanks to IP67 protection, UV-resistant flame-retardant materials, and a wide operating temperature range from −30 °C to +55 °C, the station is designed for reliable operation both indoors in a garage and outdoors. The package includes a carrying bag and a practical wall mount that allows the station to be easily installed as a stationary smart wallbox.
EV compatibility
The SECTRON NEXUS portable charging station is fully compatible with all electric vehicles and plug-in hybrid vehicles (PHEVs) sold on the European market that use the standardized Type 2 connector (IEC 62196-2 / Mennekes).

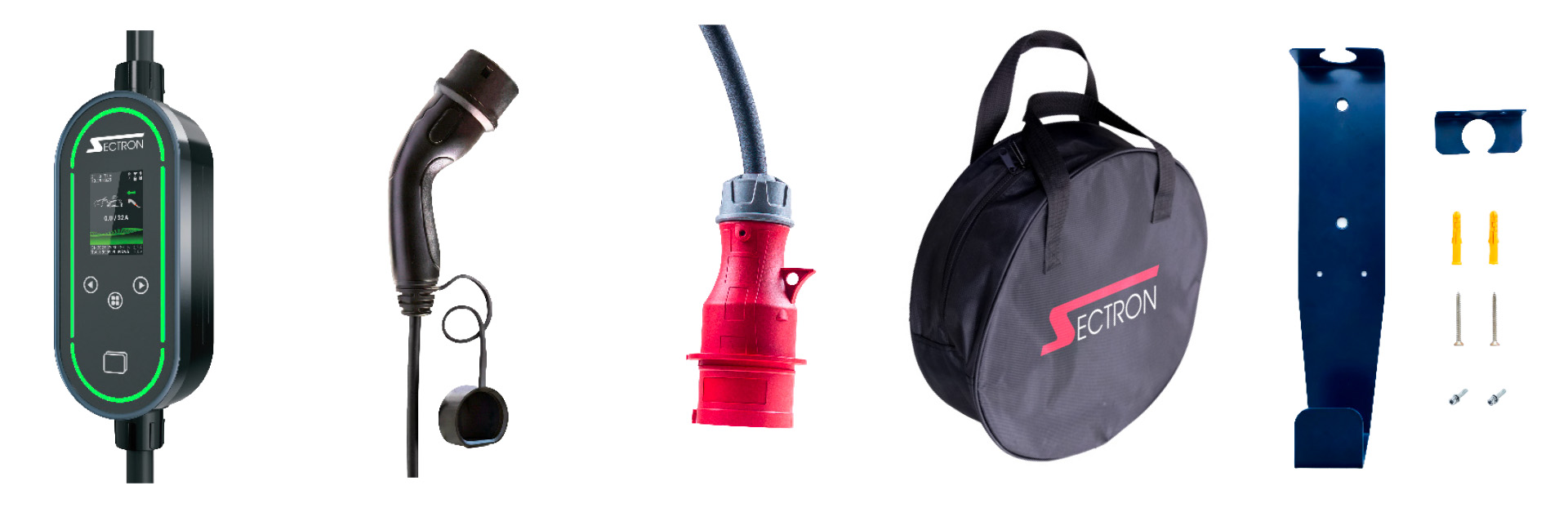

Package contents:
- Portable SECTRON NEXUS charging station (with 10 m charging cable and 5-pin CEE plug)
- Wall mount, including mounting hardware
- Carrying bag Quick
- Start Guide (QSG)
Portable charging station specifications:
- Input: 230/400 V, 50 Hz, 6 A - 16 A (3 phases)
- Output: 230/400 V, 50 Hz, 6 A - 16 A (3 phases)
- Maximum charging power: 1.3 kW - 11 kW
- Conductor: 5×2.5 mm² + 1×0.5 mm²
- Adjustable current: 6 A to 16 A (1 A step)
- Connector to the vehicle: Type 2 IEC 62196-2 Female plug (DSIEC2e-EV32P)
- Connector to the socket: CEE 400 V 16 A 5-pin
- Cable length: 10 meters
- Safety protection: RCD type B current protection (AC 30 mA, DC 6 mA)
- Protection level: IP67 (high resistance to dust and water)
- Display: 2.4″ color LCD
- Wireless connectivity: Wi-Fi 2.4 GHz, Bluetooth
- Supported protocols: OCPP 1.6-J, ModBus TCP
- Operating temperature: −30 °C to +55 °C
- Dimensions: 200 mm × 90 mm × 52 mm (H × W × D)
- Weight: 3.0 kg
- Body material: polycarbonate (PC) - flame retardant, UV stable
- Standards and certifications: ČSN EN 62752:2016 + A1:2020 + Z1:2025, CE, RoHS
- Delayed start setting: yes
