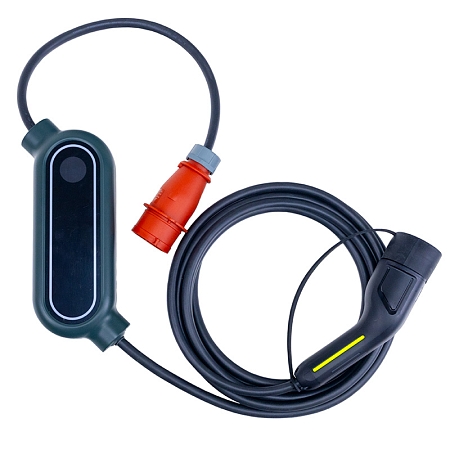

Portable charger for electric car SECTRON START - 16A, 400V, CEE 5pin - Type 2, cable length 5m
Key characteristics:
- Delayed start
- LED display
- Output settings
- IP55 protection
- Small size
The SECTRON START portable charging station is the ideal solution for owners and users of electric cars who want flexible and convenient charging of their car at home, at work and on the go. This portable charger provides flexible and convenient charging. Thanks to its compact design, it can be easily transported in the trunk of a car. It can be connected wherever there is a three-phase five-pin red 400 V 16 A (CEE 5-pin 400 V 16 A) electrical outlet. The device is intended for charging vehicles with a TYPE 2 connector (IEC 62196) and offers a maximum output of 11 kW. Moreover, it can be easily attached to the wall using the included bracket, which makes it easier to use. The portable charging station is equipped with a robust chassis with an IP66 degree of protection, which ensures protection against dust and water, which allows it to be used even in outdoor conditions. Simply connect the SECTRON START charger to the network and start charging your electric car immediately.
Delayed start of charging
The portable charger is equipped with a delayed start function, thanks to which you can delay the start of charging according to the current consumption of the household/company or according to the low/high tariff, thereby take advantage of the cheaper rates of the low tariff or influence the end time of charging of your vehicle. The delayed start is set manually in steps of 60 minutes in the range from 0 to 12 hours.
Setting the charging current limitation
The charging current is adjustable in steps in the range from 6 to 16 A. You can thus manually limit the charging power according to the parameters of the circuit breaker or the situation in a specific object. A portable charger is not able to dynamically control the charging process in relation to the whole house as a stationary wallbox with a SmartMeter or a SolarManagement can.
LED Display
In addition to the LED indicators that show the charging status, the station is equipped with an LED display that shows the consumed current, voltage, current charging power, charger temperature, charging time and already charged energy for the car. However, this data is not saved after disconnection (you can copy or take a photo of the data before disconnecting).
Cable
A three-phase charging cable designed for charging electric vehicles with a maximum current of 16 A and a power output of 11 kW. The EV cable is a type of flexible cable for the connection of an electric vehicle with a Type 2 connector. The cable length is 4 m from the unit, the total length is 5 m.
The portable charging station is packed in a practical bag made of high-strength nylon, which protects the cable from damage during transport or storage. The packed charger also saves space in the trunk of the electric car.
Parameters of the SECTRON START portable charging station:
• Input/Output voltage: 230V/400V, 6A-16A
• Input frequency: 50 Hz
• Output power: 11 kW (max)
• Output current: 16 A (max)
• Delayed start: 0 - 12 hours (in steps of 60 minutes)
• RCD: IΔN AC = 30 mA, IΔN DC = 6 mA
• Degree of protection: IP66
• Working temperature: -25 ℃ - +55 ℃
• Protection features: overvoltage/undervoltage, overheat protection, overload protection, lightning protection, current protection
• Standards: EN 61851-1:2019
EN 62752:2016 + A1:2020
EN 61000-6-4:2007 + A1:2011
EN 61000-6-2:2005
EN 61000-3-11:2000
EN 61000-3-12:2011
RoHS
• Weight: 2.870 g
The biggest advantage of the SECTRON LITE portable charger comparing to a wallbox and other portable chargers is its low price. For more functions, such as an electricity meter with a memory function, IP65 protection and simpler settings check the SECTRON portable charger.
