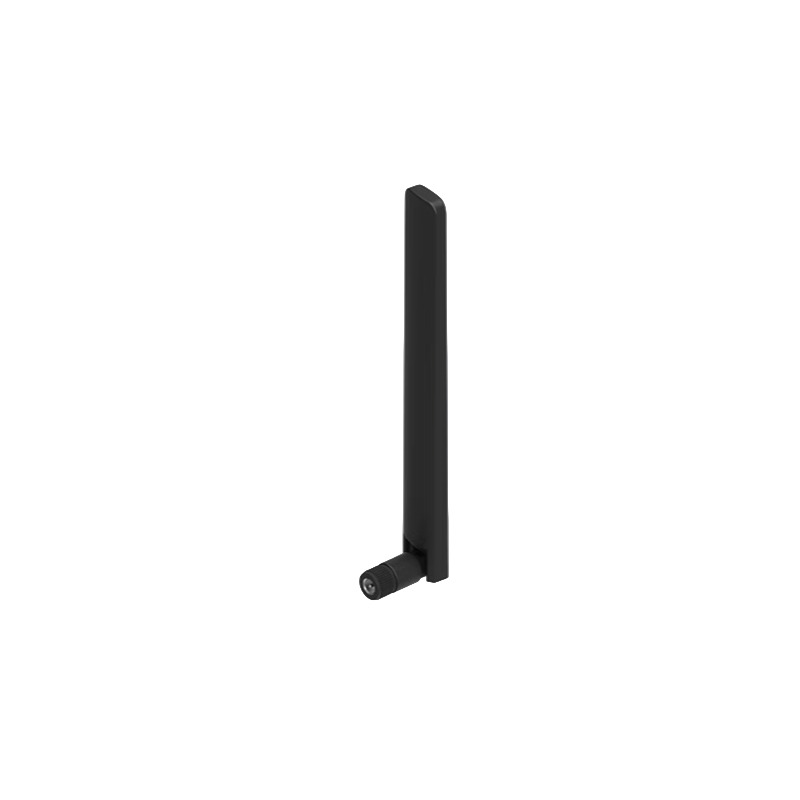

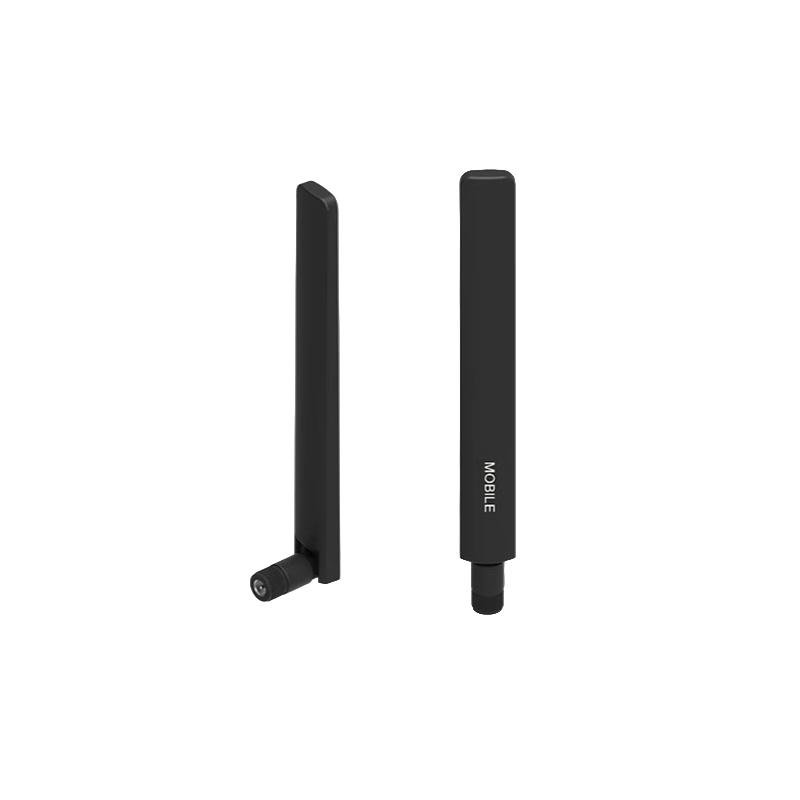

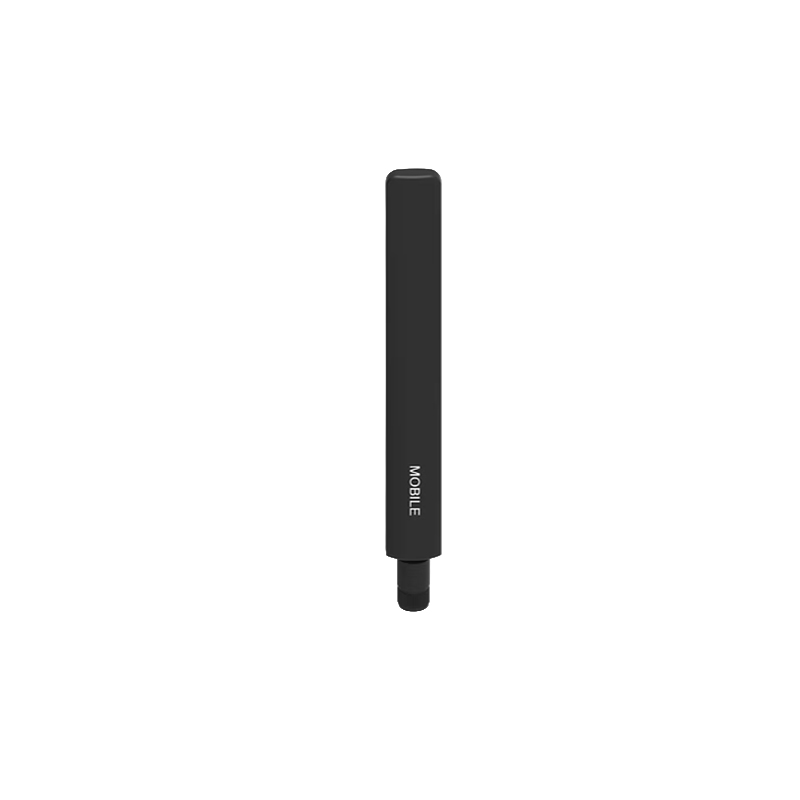

Teltonika PR1US540 - 5G Antenna
Band support
Omnidirectional antenna for signal reception in 5G and 4G/LTE technologies. The antenna is functional in the bands. Thanks to a gain of up to 4.5 dBi, the antenna ensures strong and stable signal reception even in places with fluctuating coverage.
Resistance in extreme conditions and wide temperature range
A wide operating temperature range from -40 °C to +85 °C guarantees a long service life even in demanding industrial environments.
Antenna equipment
The 5G antenna is equipped with an SMA Male connector, which allows immediate connection to most industrial routers and modems without the need for additional reductions.
Compatibility with Teltonika devices
The antenna is fully compatible with industrial routers, modems and Raspberry PI accessories:
- Teltonika ATRM50
- Teltonika RUT2xx, RUT976, RUTCxx, RUTMxx, RUTX50
- Teltonika TRB501, TRM142, TRM500
- Teltonika Raspberry PI Calyx Accessories
Technical parameters:
- Frequency ranges: 617–960 MHz, 1410–1610 MHz, 1710–2690 MHz, 3300–7125 MHz
- Gain: up to 4.5 dBi
- Polarization: Linear (vertical)
- VSWR: ≤ 3.0
- Impedance: 50 Ω
- Connector: SMA Male
- Operating temperature: -40 °C to +85 °C
- Protection degree: IP33 (suitable for indoor or covered use).
More technical parameters can be found in the attached datasheet.
