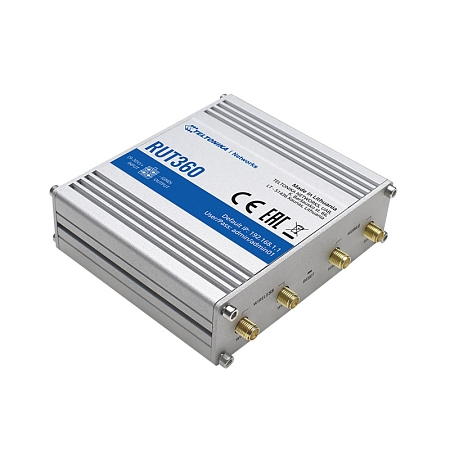

Teltonika RUT360 - router 4G LTE Cat 6
Compared to the best-selling RUT240 router, the Teltonika RUT360 industrial 4G router has been expanded with a more powerful LTE cat 6 module.
Teltonika RUT360 router - designed for 4G / LTE CAT6 WiFi technologies falls into the category of compact, cost-effective and powerful routers. It offers the ability to connect to the Internet via cellular, WiFi and cable networks. It is ideal for M2M and IoT applications. Its use is also in devices where remote monitoring is necessary, such as sensors, vending machines. Thanks to the carrier signal aggregation function, this compact device is able to increase the data rate per user, while assigning more frequency blocks to the same user. The maximum possible data rate per user increases in proportion to the number of assigned frequency blocks. This makes the router irreplaceable in areas or applications where we work with a limited mobile data speed.
You can also use the RUT360 router in a cottage, in a caravan, on the road and everywhere where it is not possible to have access to an internet cable. Thanks to its small dimensions and easy installation, you can take it anywhere.
Quality components and state-of-the-art production technology enable the RUT360 to operate in a demanding industrial environment at temperatures between -40°C and 75°C. The RUT360 is equipped with two Ethernet ports, a WiFi module supporting 802.11 b/g/n standards for easy connection to the Internet network and a 4G LTE CAT6 cellular module, which offers data transfer speeds of up to 300 Mbps. Another components a SIM slot, LED indicators of digital inputs/outputs, status LEDs, which show the level of the received signal from the mobile LTE network. SMA connectors allow the connection of external antennas, which help with the signal and make it easier to find the best location for the router. The advantages of this device include its small size and the fact that it uses a high-speed* LTE technology*, which is one of the largest and fastest mobile networks today.
Another advantage is the use of RMS functions. The Remote Management System (RMS) enables remote management and monitoring of all Teltonika network devices. The system allows you to change the configuration and collect information about the status of individual devices, even if the devices do not have a public IP address.
• 4G LTE CAT 6, Cellular speeds up to 300Mbps with Carrier Aggregation
• WIFI - 802.11 b / g / n
• Small size - easy integration
• Rugged aluminum housing
• High temperature resistance
• Firewall and numerous VPN services, including OpenVPN, IPsec, PPTP, L2TP & SSTP
• Compatible with Teltonika Remote Management System (RMS)
STANDARD PACKAGE CONTAINS:
• Router RUT360
• 18 W Euro PSU
• 2 x LTE antennas (swivel, SMA male)
• 2 x WiFi antennas (swivel, RP-SMA male)
• Ethernet cable (1.5 m)
• SIM adapter Kit
• QSG (Quick Start Guide)
• RMS Flyer
For this router RUT360 you can buy the Teltonika BAT120 backup power supply, which takes over the power supply of the router for up to 6 hours in the event of a power failure.
We recommend using the complete user manual and documents for configuration, official materials can be found here.
Technical parameters can be found in the attached datasheet.
RUT360 Quick start video
The Quick Start Guide video guides you step-by-step through setting up the router from unpacking the box, inserting the SIM card, connecting the antennas, and logging into the administration.
