Product code: GM-TSW202
EAN: 4779051840281

Teltonika Switch TSW202, L2 managed, PoE+

Product code: GM-TSW202
EAN: 4779051840281

Teltonika Switch TSW202, L2 managed, PoE+

The TSW202 is Teltonika Networks' first PoE+ switch designed to provide extensive network management capabilities while centralizing power distribution. This switch offers solution and power management flexibility and enhances M2M communications by supporting a wide range of industrial protocols, including EtherNet/IP, Profinet and MRP. TSW200 allows port setting and control profiles.

140.36incl. VAT (21%) / pc

excl. VAT 116.00 € / pc

In stock < 10 pc
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

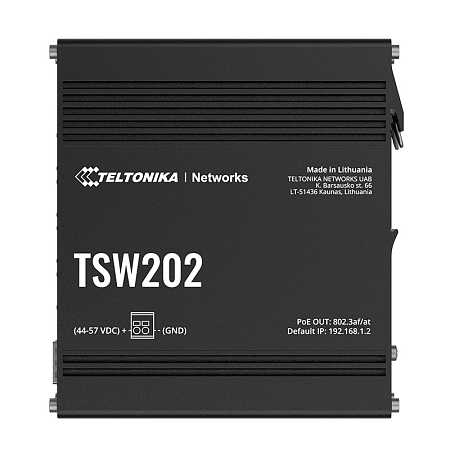

Teltonika TSW202 - switch PoE+

The TSW202 is Teltonika Networks' first PoE+ switch designed to provide extensive network management capabilities while centralizing power distribution. This switch offers solution and power management flexibility and enhances M2M communications by supporting a wide range of industrial protocols, including EtherNet/IP, Profinet and MRP. TSW200 allows port setting and control profiles.

The Teltonika TSW202 managed switch has L2 and L3 functions, e.g. static routing in IPV4/IPV6 networks. And also 2 high-performance SFP ports that enable communication over optical lines. The Switch is also equipped with 8 gigabit Ethernet ports, each providing up to 30 W of power, a total power budget of 240 W. All ports support active PoE+ (802.3at, 802.3af), which ensures that your device is powered without the need for additional cables and adapters in within PoE injectors.

The Teltonika TSW202 controlled switch is equipped with a robust metal housing that protects it from dust, moisture, vibration and extreme temperatures.

The TeltonikaTSW202 switch can be managed remotely via the Teltonika Remote Management System (RMS), a cloud-based platform that allows you to monitor and configure your equipment from anywhere.

Try RMS for free by clicking on this link to register your free 30-day demo account!
LINK: https://rms.teltonika.lt/

Features:

• 2 x SFP ports
• 8 x Gigabit Ethernet with speeds up to 1000 Mbps
• Ingress protection rating IP30
• Operating temperature -40 °C to 75 °C
• Aluminum housing with wall or DIN rail mounting option and grounding capability
• Dimensions 132 x 44.2 x 122.2  mm
• Weight 610g

Standard package contains:

Switch Teltonika TSW202
• QSG (Quick Start Guide)

We recommend using the complete user manual and documents for configuration, official materials can be found here.

More information can be found in the attached datasheet and quick manual.

Quick Start Guide Video

The Quick Start Guide video guides you step-by-step through setting up the switch.


Parameters

Operating temperature -40 ~ +75  °C Dimensions 132 x 44.2 x 122.2  mm
Weight 610  g Ingress protection (IP) IP30
Communication interface 8x RJ45 , 2x SFP Power supply 7-57

140.36incl. VAT (21%) / pc

excl. VAT 116.00 € / pc
