Teltonika LTE Router RUT951 - Quectel
This router (product code GM-RUT951) is equipped with a Quectel cellular module.
Teltonika RUT951 is a modified version of the popular RUT950 router. LTE router RUT951 with WiFi and Ethernet support is designed for Wi-Fi/4G LTE CAT4/3G/2G technologies.

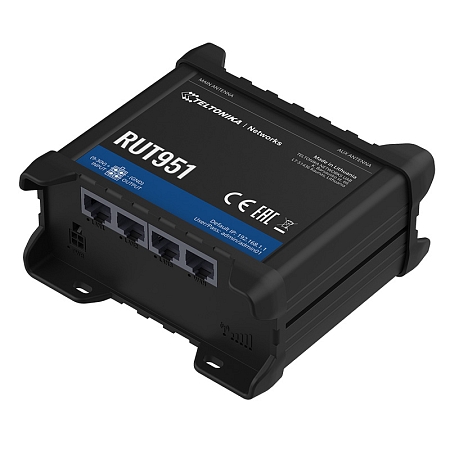

The highly reliable and powerful LTE router RUT951 in a durable aluminium case is equipped with four Ethernet ports with a speed of 10/100 Mbps, two internal SIM slots, and LED indicators of digital inputs/outputs indicating the signal status of the mobile LTE network. Two RP-SMA connectors are used for connecting external antennas for WiFi antennas, and two SMA connectors for LTE antennas. The WiFi router supports the Dual-SIM failover function, which enables automatic switching to the operator's secondary network when the signal is weak or the primary one fails, and the WAN failover function, which redirects traffic to the active connection when the data connection fails.
The router is ideal for IoT devices and applications that require remote monitoring, such as vending machines, sensors in the energy industry, computers, servers and other network devices.
Teltonika RUT951 is equipped with the RutOS system. It is an operating system based on OpenWRT Linux, which is a big plus for choosing Teltonika routers. This system offers advanced security features and compatibility with the RMS remote message system.
Key Features of Teltonika RUT951:
• LTE Cat 4 support up to 150 Mb/s
• Automatic switching to an available backup connection
• Wireless access point with Hotspot function
• Dual SIM - significantly reduces roaming costs
• WAN failover
• 4x Ethernet ports
• Teltonika Remote Management System compatible
Package contains:
• Router RUT951
• 9 W PSU
• 2 x LTE antennas (swivel, SMA male)
• 2 x WiFi antennas (swivel, RP-SMA male)
• Ethernet cable (1.5 m)
• SIM Adapter kit
• QSG (Quick Start Guide)
For this router RUT951 you can buy the Teltonika BAT120 backup power supply, which takes over the power supply of the router for up to 6 hours in the event of a power failure.
Try RMS for free by clicking on this link to register your free 30-day demo account!
LINK: https://rms.teltonika.lt/
We recommend using the complete user manual and documents for configuration, official materials can be found here.
More information can be found in the attached datasheet.
Quick Start Guide Video
The Quick Start Guide video guides you step-by-step through setting up the router from unpacking the box, inserting the SIM card, connecting the antennas, and logging into the administration.
