The RUT955 product has an EOL (End of Life) status. The product is for sale while stocks last. The replacement for this device is the RUT956.

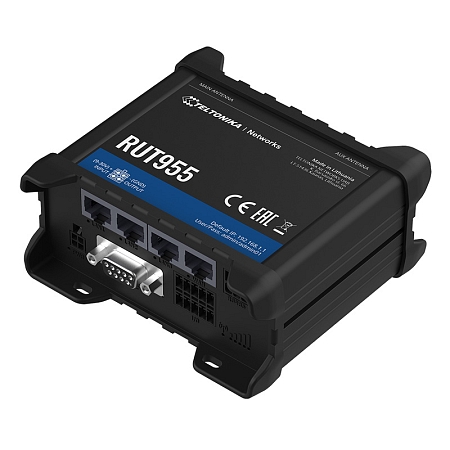

Teltonika Industrial router RUT955 – suitable for 4G/LTE CAT4 Wi-Fi, GPS
This router (product code GM-RUT955-D) is equipped with a cellular Quectel module.
The RUT955 router – designed for 4G/LTE CAT4 Wi-Fi technologies – is a highly reliable and secure router combined with GPS navigation functionality.
Digital inputs, outputs, and serial ports
The router is additionally equipped with two digital inputs and one analog input. It also features one digital and one relay output. Another key advantage is the RS232/RS485 serial ports, which are widely used in professional industrial applications.
Reliable backup with Dual-SIM and WAN Failover features
The RUT955 device supports Dual-SIM failover in the event of a SIM card failure, as well as WAN failover.
Easy antenna installation and router positioning optimisation
SMA connectors allow you to attach the required antennas, and together with LED signal status indicators, they make it easy to find a suitable mobile LTE network signal level for the most effective placement of the router.
Tip for outdoor installation without signal loss
For using the router in demanding outdoor conditions (e.g., for camera, solar, and security systems), we recommend purchasing the integrated QuWireless QuSpot AX50S omnidirectional antenna.
This kit serves as a robust waterproof IP68 enclosure into which you simply mount the Teltonika router.
RutOS operating system and remote management
The RUTM55 industrial 5G router is equipped with the RutOS system, which supports industrial protocols and various VPN networks. It is an operating system based on OpenWRT Linux, which is a major advantage when choosing Teltonika routers. This system offers advanced security features and compatibility with the RMS Remote Management System.
Try RMS for free by clicking on this link to register your free 30-day demo account!
LINK: https://rms.teltonika.lt/
Key Features:
• LTE Cat 4 up to 150 Mbps support
• Dual SIM – significantly reduce roaming costs
• GNSS positioning with geofencing functionality
• RS232/RS485 serial communication interfaces
• TCP Modbus, Modbus Serial Master (RTU), Modbus ASCII
• Multiple Inputs/Outputs for remote monitoring and control
• Teltonika Remote Management System compatible
Standard Package Contains:
• Router RUT955
• Euro PSU
• 2 x LTE antennas (magnetic mount, SMA male, 3 m cable)
• 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
• RS485 connector block
• I/O connector block
• Ethernet cable (1.5 m)
• QSG (Quick Start Guide)
• DIN holder
For this router RUT955 you can buy the Teltonika BAT120 backup power supply, which takes over the power supply of the router for up to 6 hours in the event of a power failure.
Try RMS for free by clicking on this link to register your free 30-day demo account!
LINK:
https://rms.teltonika.lt/
More information can be found in the attached datasheet.
Quick Start Guide Video
The Quick Start Guide video guides you step-by-step through setting up the router from unpacking the box, inserting the SIM card, connecting the antennas, and logging into the administration.
