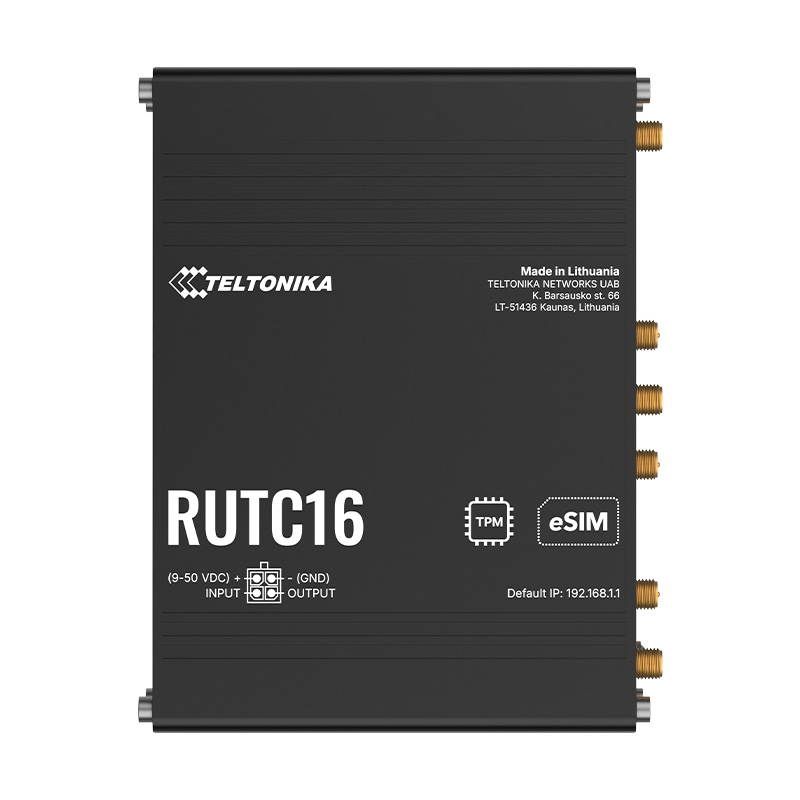

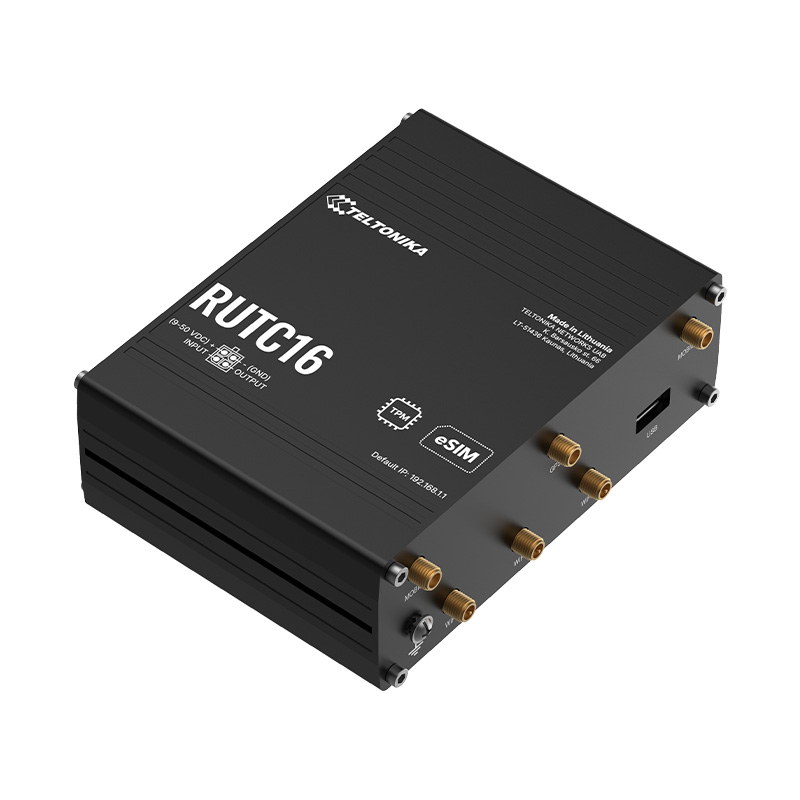

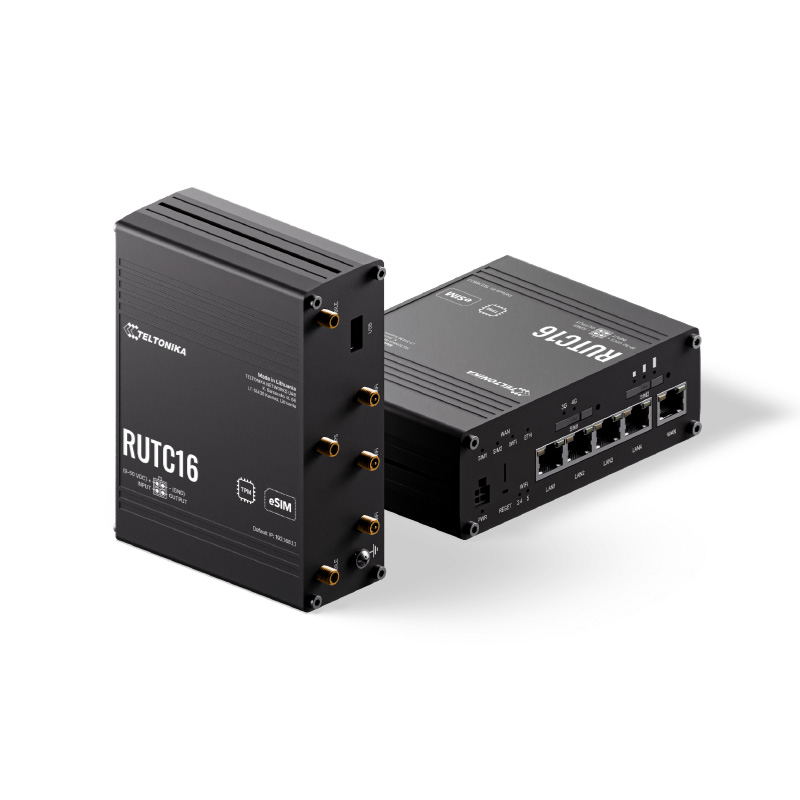

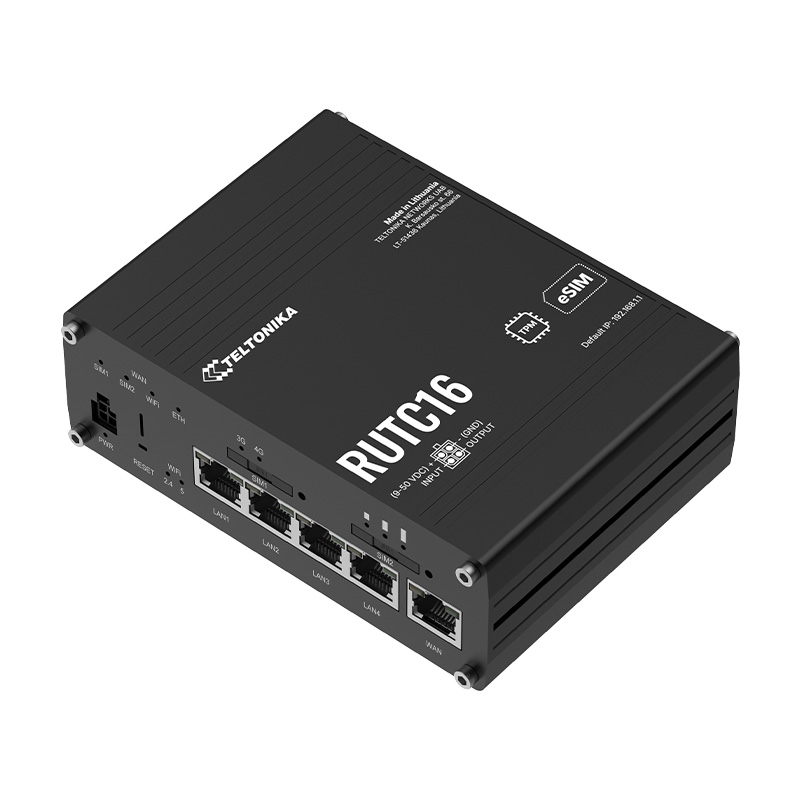

Industrial LTE Router Teltonika RUTC16
Teltonika RUTC16 is a next-generation compact industrial LTE Cat 6 router that provides high-speed connectivity for the energy sector, industrial automation, corporate networks, the commercial sector and Smart City projects.
High-Speed LTE Cat 6 Connectivity
This router offers download speeds of up to 300 Mbps and upload speeds of up to 50 Mbps. Carrier Aggregation support ensures a stable connection even in challenging conditions.
Advanced Edge Computing & Docker
Powered by a dual-core 1.3 GHz processor, 1 GB of RAM and 8 GB of flash memory, the router delivers ample performance for demanding operations and real-time data logging. Docker support in the RutOS operating system allows containerised applications and custom software solutions to run directly on the router, reducing latency and improving system efficiency.
Modern Wi-Fi 6 Technology
Wi-Fi 6 delivers significantly higher speeds, improved stability and the ability to serve a large number of devices simultaneously. It supports up to 512 simultaneous connections.
Maximum Connectivity and Interfaces

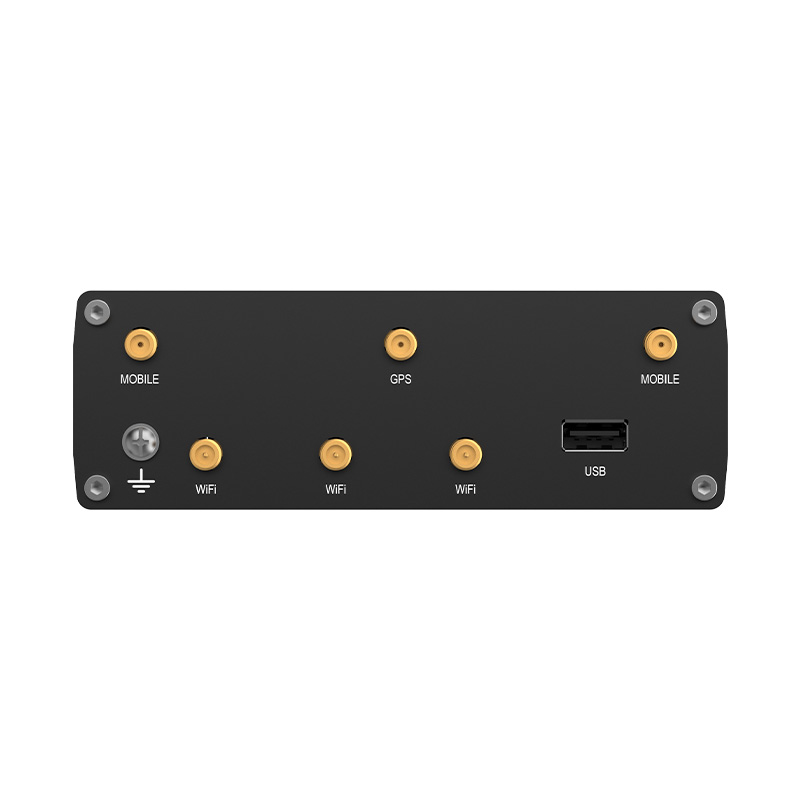

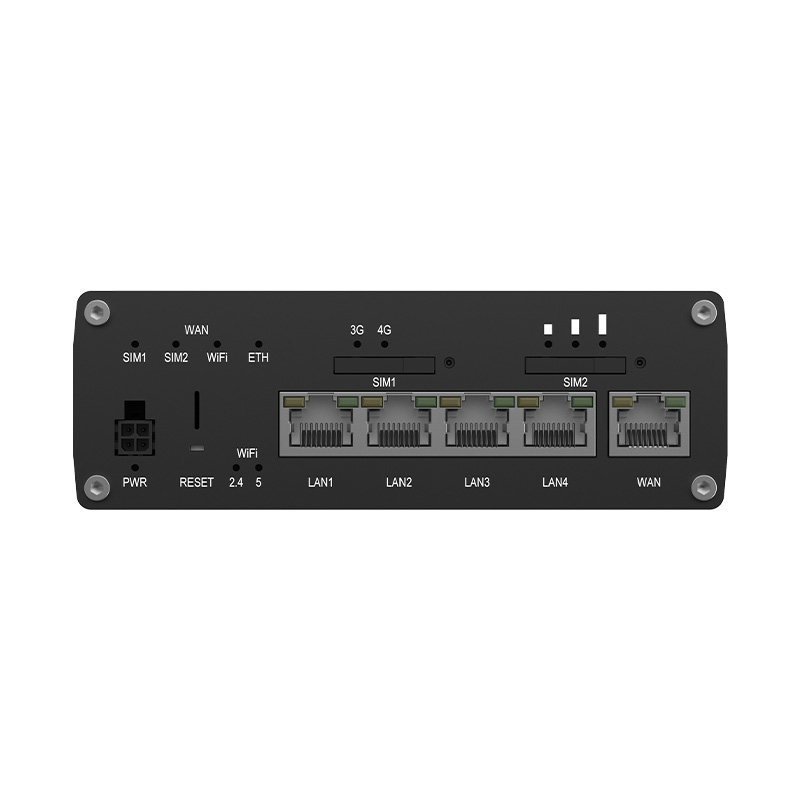

The router is equipped with five Gigabit Ethernet ports (1× WAN, 4× LAN), two Mini-SIM card slots and eSIM support for up to 7 profiles with automatic switching.
Location Tracking
The integrated GNSS module supports GPS, GLONASS, BeiDou, Galileo and QZSS for precise location tracking and time synchronisation. It also supports NTRIP for RTK corrections.
Rugged Industrial Design
A durable aluminium enclosure (IP30), a wide operating temperature range (-40 °C to +75 °C) and a 9–50 V DC power supply ensure reliable operation in the demanding environments of industry, energy, transport and critical infrastructure.
Advanced RMS Management
The LTE router runs the proven RutOS operating system, which provides industrial-grade features, advanced security and seamless integration with cloud platforms. It is fully compatible with Teltonika RMS (Teltonika Remote Management System), enabling you to monitor and configure your entire fleet of devices from anywhere in the world.
Try RMS for free by clicking the link and registering for your free 30-day demo account!
PROLINK: https://rms.teltonika.lt/
Key Features:
- Mobile network: Global 4G LTE Cat 6
- Wi-Fi: Dual-band Wi-Fi 6 (802.11b/g/n/ac/ax) with MU-MIMO support, up to 512 simultaneous connections
- Processing power: 1.3 GHz CPU, 1 GB RAM, 8 GB flash
- Software flexibility: Docker container support for deploying custom applications
- Industrial-grade: Rugged design, advanced security and remote management
- Ingress protection rating: IP30
- Mounting: DIN rail, wall or flat surface
- Dimensions: 132 × 44.2 × 104 mm
- Weight: 490 g
Package Contents:
- RUTC16 router
- 18 W power supply
- 2× cellular antennas (articulated, SMA male)
- 3× Wi-Fi antennas (magnetic, RP-SMA male)
- 1× GNSS antenna
- Ethernet cable (1.5 m long)
- SIM adapter kit
- Quick Start Guide (QSG)
We recommend using the detailed manual and configuration resources. Official materials are available here.
The Teltonika BAT120 backup power supply can be purchased for the RUTC16 router. In the event of a power outage, it can power the router for up to 6 hours.
Technical specifications can be found in the attached datasheet.
