Teltonika RUTC54: Global Industrial 5G Router with Wi-Fi 6, eSIM and Docker Support
The Teltonika RUTC54 industrial 5G router provides uninterrupted, high-speed internet connectivity anywhere in the world. It features a global Telit 5G modem (Sub-6 GHz, SA/NSA, 3GPP Release 16) with download speeds of up to 3.4 Gbps.
With Dual SIM and eSIM technology and automatic failover, you stay connected even if one network goes down. The router supports edge computing with Docker running directly on the device, offers Wi-Fi 6 and enables convenient centralized management through the Teltonika RMS cloud platform. It is an ideal solution for industrial IoT applications, automation and large-scale distributed networks.
Global 5G Connectivity
The industrial router is equipped with a Telit modem that supports ultra-fast 5G connectivity, with download speeds of up to 3.4 Gbps and upload speeds of up to 900 Mbps. Where 5G is unavailable, the device automatically and seamlessly switches to high-speed LTE Cat 19, with speeds of up to 1.6 Gbps, ensuring uninterrupted connectivity.
Dual SIM + eSIM
For maximum reliability, the router has two Mini SIM card slots and a built-in eSIM that can store up to seven different profiles. Switching between SIM cards happens automatically in the event of a weak signal, network outage, roaming or exhausted data allowance. You can change the operator or profile remotely, without sending a technician to the site.
The RUTC54 5G Router in Practice
The Teltonika RUTC54 industrial 5G router is suitable wherever reliable, fast and secure data transmission is essential:
- Industry and automation: Remote access to machinery and PLCs, and real-time data collection.
- Energy and utilities: Grid monitoring, meter readings and renewable energy management.
- Smart cities: Connectivity for transport infrastructure, public lighting and security cameras.
- Transport and logistics: Vehicle location tracking via GNSS and telemetry transmission.
Edge Computing with Docker
With powerful hardware—a dual-core ARM Cortex-A53 processor (1.3 GHz), 1 GB of DDR4 RAM and 8 GB of eMMC storage—the router can run containers and custom applications directly on the device. This allows data to be processed locally without constant reliance on the cloud.
Dual-Band Wi-Fi 6
Wireless connectivity is provided by the modern Wi-Fi 6 standard (802.11ax) with MU-MIMO technology. It delivers speeds of up to 2,402 Mbps on the 5 GHz band and up to 576 Mbps on the 2.4 GHz band. The router can handle up to 512 users connected simultaneously and fully supports mesh networking and fast roaming.
5× Gigabit Ethernet

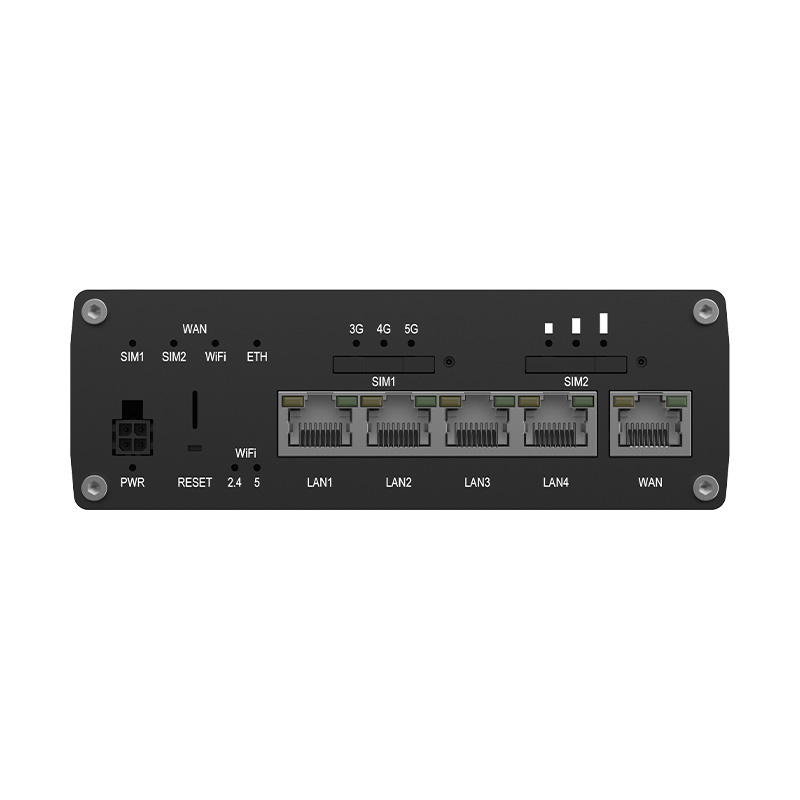

Wired connectivity is provided by five 10/100/1000 Mbps Gigabit ports, configured as 1× WAN and 4× LAN. LAN1 also supports passive PoE input, providing flexible power options.
Industrial-Grade Security
Data and network protection are ensured by a TPM 2.0 encryption chip, an advanced firewall, DDoS attack protection, VLAN support and 802.1X. The router supports a wide range of '>VPN protocols, including OpenVPN, IPsec, WireGuard, ZeroTier, Tailscale and many others.
Rugged Design for Demanding Environments
The RUTC54 has an anodized aluminium housing and operates in temperatures ranging from -40 °C to +75 °C, with humidity levels of 10 to 90% (non-condensing). It is powered via an industrial 4-pin connector over a 9–50 V DC range, with reverse-polarity and overvoltage protection. It can be mounted on a DIN rail or wall, or placed on a flat surface (mounting kits are sold separately).
Industrial Protocols and IoT Integration
The router supports Modbus TCP, MQTT, DNP3, DLMS/COSEM, BACnet and OPC UA. It can connect to cloud platforms such as Azure MQTT, AWS IoT Core, Cumulocity and ThingWorx. Integrated GNSS (GPS, GLONASS, Galileo, BeiDou, QZSS) supports location tracking and geofencing. The router also includes a digital input and output, plus a USB port for external devices.
Remote Management with RMS
The RUTC54 industrial 5G router runs RutOS, a Linux-based operating system built on OpenWRT—a major advantage when choosing Teltonika routers. RutOS offers advanced security features and is compatible with the RMS remote management system.
Try RMS for free: click this link to register for a free 30-day demo account!
LINK: https://rms.teltonika.lt/
Key Features:
- Mobile network: 5G SA/NSA (up to 3.4 Gbps DL / 900 Mbps UL), LTE Cat 19/18, 3G
- Ethernet interfaces: 5× RJ45 Gigabit (1× WAN, 4× LAN)
- Mobile technologies: 5G, 4G (LTE Cat 18), 3G
- Wi-Fi 6: Dual-band 802.11b/g/n/ac/ax, with speeds of up to 2,402 Mbps on 5 GHz and 576 Mbps on 2.4 GHz (MU-MIMO); supports up to 512 simultaneous connections
- Wide power supply range: 9–50 V
- Easy-to-use, secure RutOS operating system
- Teltonika Remote Management System support
- DIN rail, wall or flat-surface mounting
- Ingress protection rating: IP30
- Dimensions: 130.4 × 42.6 × 103.4 mm
- Operating temperature: -40 °C to +75 °C
Standard package contains:
- RUTC54 5G router
- 24 W power supply
- 4× 5G antennas (hinged, SMA male)
- 3× Wi-Fi antennas (magnetic, RP-SMA male, 1.5 m cable)
- 1× GNSS antenna (adhesive, SMA male, 3 m cable)
- Ethernet cable (1.5 m)
- SIM adapter kit
- QSG (Quick Start Guide)
The Teltonika BAT120 backup power supply is available for the RUTC54. In the event of a power outage, it can keep the router powered for up to 6 hours.
We recommend using the detailed manual and configuration resources. Find the official materials here.
For the technical specifications, see the attached datasheet.
