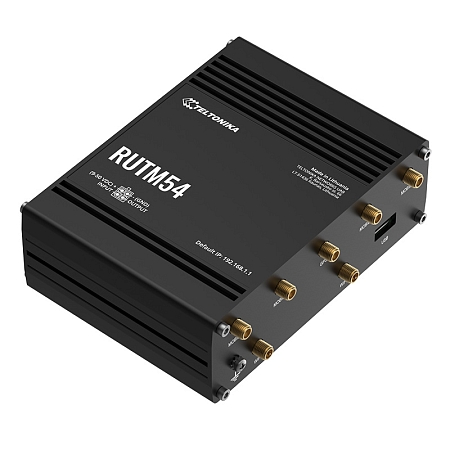

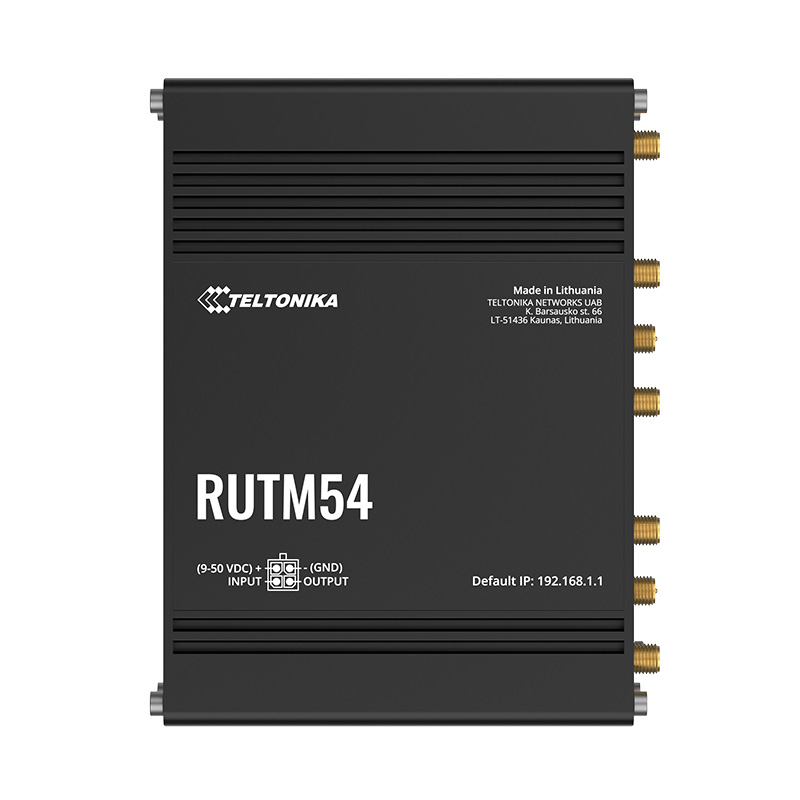

5G router Teltonika RUTM54
The Teltonika RUTM54 is a high-performance 5G router, ideal for data-intensive applications that require reliable and high-speed connectivity. This router is equipped with a European 5G modem from Telit, which provides excellent global connectivity and stable performance. Wireless connectivity is provided by 5 Gigabit Ethernet ports and dual-band Wi-Fi 802.11b/g/n/ac Wave 2 (Wi-Fi 5), providing robust redundancy. With two SIM card slots and eSIM support, automatic failover and WAN backup are provided, ensuring uninterrupted operation and reliable service. With backward compatibility with 4G (LTE Cat 19 1.6Gbps DL, LTE Cat 18 211Mbps UL) and multiple interface options, the RUTM54 5G router is designed for easy expansion and future upgrades.
Teltonika RUTM54 achieves maximum data rates of 2.5/3.4 Gbps when downloading and 900/550 Mbps UL when uploading.
The robust design of the Teltonika RUTM54 device ensures its reliable operation even in extreme industrial conditions. The RUTM52 5G router is an ideal choice for applications that require a stable and high-performance connection. It supports SA and NSA architectures for the use of 5G infrastructure. The main difference between NSA (Non-Standalone Architecture) and SA (Standalone Architecture) is that NSA anchors the control signalling of 5G radio networks to the 4G core, while the SA scheme connects' >' >' > 5G networks directly to the 5G core network, the control signalling does not depend on 4G at all sewing.
Data security is ensured by a wide range of software functions, such as control of SMS messages, firewall, OpenVPN, IPSec, RMS. Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL).
The industrial gateway Teltonika RUTM51 is equipped with the RutOS system. It is an operating system based on OpenWRT Linux, which is a big plus for choosing Teltonika routers. This system offers advanced security features and compatibility with the RMS remote message system.
Key features of the RUTM54:
• Ethernet interface: - 1 x WAN port 10/100/1000 Mbps, complies with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- 4 x LAN port 10/100/1000 Mbps, complies with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
• 5G modem from Telit
• WiFi 5 technology support
• Mobile technologies: 5G, 4G (LTE Cat 19 1.6Gbps DL, LTE Cat 18 211Mbps UL), 3G
• Wide range of supply voltages 9-50 V
• DUAL SIM and eSIM support
• RutOS - easy-to-use, secure operating system
• Teltonika Remote Management System support
• SA (Standalone Architecture) and NSA (Non-Standalone Architecture) support
• DIN rail mounting
• Protection level: IP30
• Dimensions: 132 x 44.2 x 95 mm
• Weight: 530 g
Standard package contains:
• Teltonika RUTM52 Router
• 18 W PSU
• 4 x Mobile antennas (swiwel, SMA male)
• 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
• 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
• Ethernet cable (1.5 m)
• SIM Adapter kit
• QSG (Quick Start Guide)
Try RMS for free by clicking on this link to register your free 30-day demo account!
LINK: https://rms.teltonika.lt/
We recommend using the complete user manual and documents for configuration, official materials can be found here.
More information can be found in the attached datasheet.
