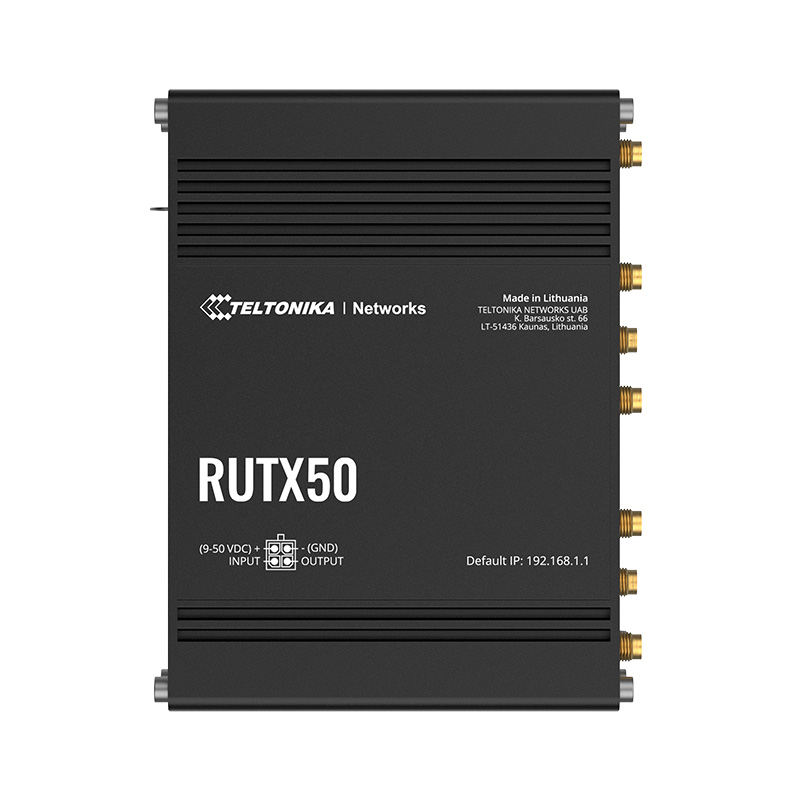

Teltonika RUTX50 5G router
Teltonika RUTX50 is an industrial router with support for ' >5G mobile networks with a speed of up to 3.3 Gbps. The big advantage of the Teltonika RUTX50: is 5x Gigabit Ethernet ports, 5G Dual SIM and dual-band Wi-Fi 5 Wave 2. This set-up guarantees fast and reliable data transfer with ultra-low latency. And this makes the 5G router Teltonika RUTX50 ideal for industrial high-speed and data-intensive applications.
The capabilities of ' >5G technology, combined with a wide range of interfaces and industrial hardware features, ensure adaptation for future network upgrades and expansions.
The router Teltonika RUTX50 also ensures a reliable connection to 4G LTE CAT 20 and 3G networks. It supports SA and NSA architectures for the use of 5G infrastructure. The main difference between NSA (Non-Standalone Architecture) and SA (Standalone Architecture) is that NSA anchors the control signalling of 5G radio networks to the 4G core, while the SA scheme connects' > 5G networks directly to the 5G core network, the control signalling does not depend on 4G at all sewing.
The device includes 4 SMA antenna connectors for GSM networks, 2x RP-SMA for WiFi and 1x SMA for GNSS. Also Dual SIM slot, USB and 5 x RJ-45 Ethernet port (4x LAN + 1x WAN).
Data security is ensured by a wide range of software functions, such as control of SMS messages, firewall, OpenVPN, IPSec, RMS. Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL).
The industrial gateway Teltonika RUTX50 is equipped with the RutOS system. It is an operating system based on OpenWRT Linux, which is a big plus for choosing Teltonika routers. This system offers advanced security features and compatibility with the RMS remote message system.
Key features of the RUTX50:
• Ethernet interface
• Mobile technology: 5G, 4G (LTE CAT 20), 3G
• Dimensions: 132 x 44.2 x 95.1 mm
• Wide range of supply voltages: 9-30 V
• RutOS – an easy-to-use, secure and feature-rich operating system
• Teltonika Remote Management System
• Support for SA (Standalone Architecture) and NSA (Non-Standalone Architecture)
• Mounting on a DIN rail
• Degree of protection: IP30
Standard package contains:
• Teltonika RUTX50 Router
• 18 W PSU
• 4 x Mobile antennas (swivel, SMA male)
• 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
• 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
• Ethernet cable (1.5 m)
• SIM Adapter kit
• QSG (Quick Start Guide) / RMS Flyer
Quick Start Guide Video
The Quick Start Guide video guides you step-by-step through setting up the router from unpacking the box, inserting the SIM card, connecting the antennas, and logging into the administration.
For this router RUTX50 you can buy the Teltonika BAT120 backup power supply, which takes over the power supply of the router for up to 6 hours in the event of a power failure.
Try RMS for free by clicking on this link to register your free 30-day demo account!
LINK: https://rms.teltonika.lt/
We recommend using the complete user manual and documents for configuration, official materials can be found here.
More information can be found in the attached datasheet.
