Teltonika TRB142 Gateway
Attention! For security reasons, Teltonika has issued a recommendation to update the firmware for the TRB14x series gateways (TRB140, TRB141, TRB142, TRB143 and TRB145). Learn more HERE.
Attention! For security reasons, Teltonika has issued a recommendation to update the firmware for the TRB14x series gateways (TRB140, TRB141, TRB142, TRB143 and TRB145). Learn more HERE.

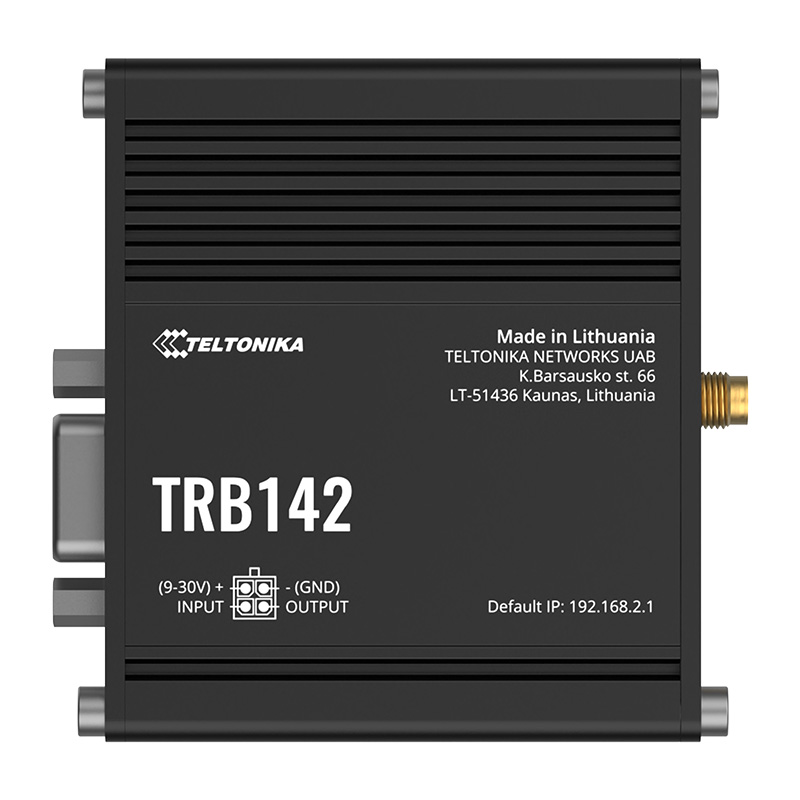

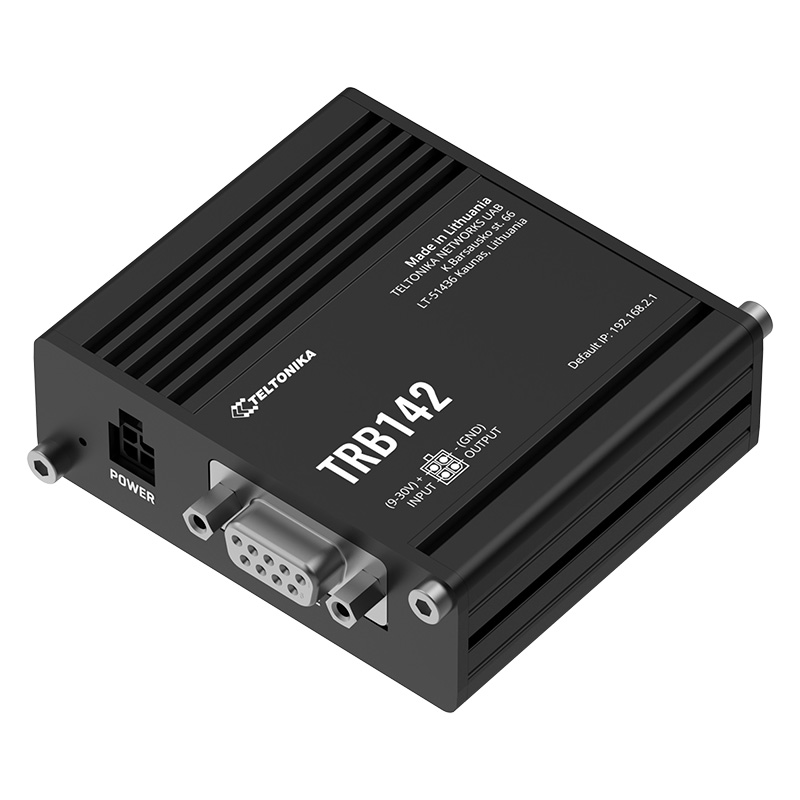

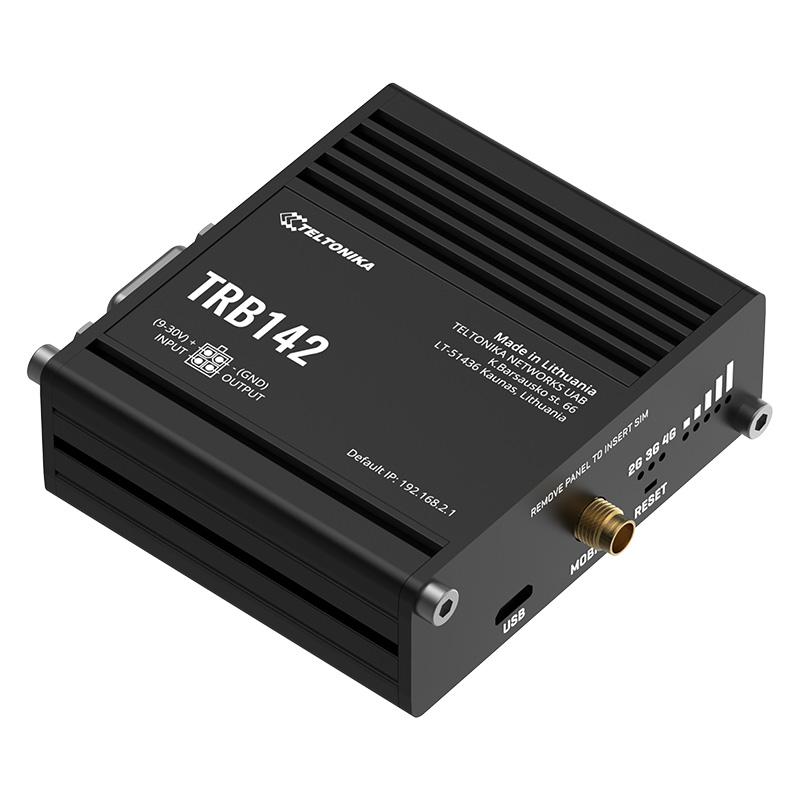

Gateway Teltonika TRB142 is ideal for remote control of one IoT device via RS232 interface. Like other TRB products, it provides a wide range of software features such as SMS, VPN, IPsec, Firewall and FOTA support. This rugged gateway has a wide range of supply voltages and is compatible with the Teltonika Remote Management System (RMS).
This industrial device Teltonika TRB142is equipped with the RutOS system. It is an operating system based on Linux OpenWRT, which is a big plus for the selection of Teltonika routers.
Key Features:

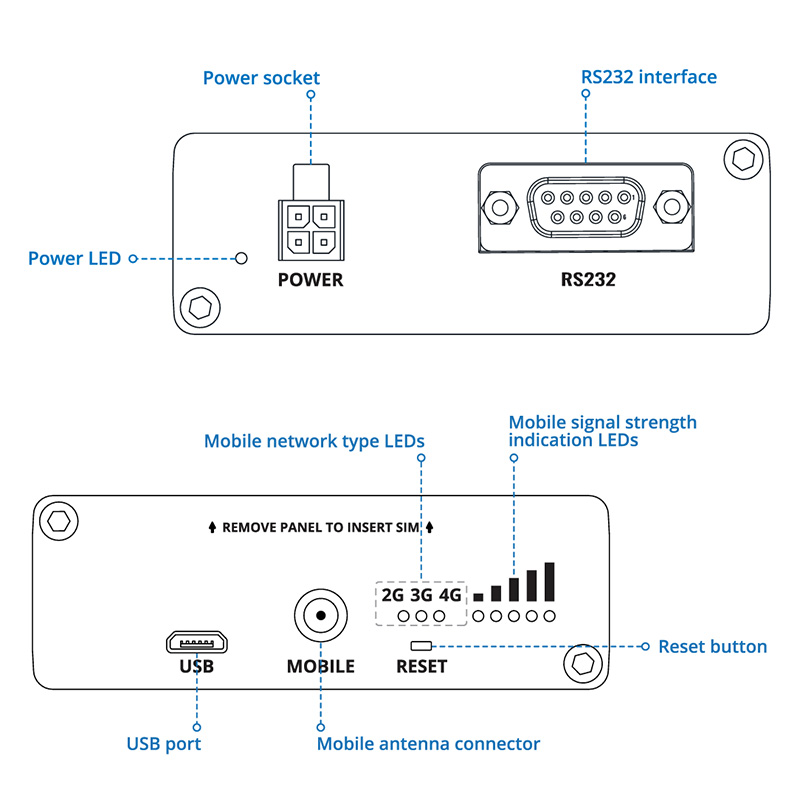

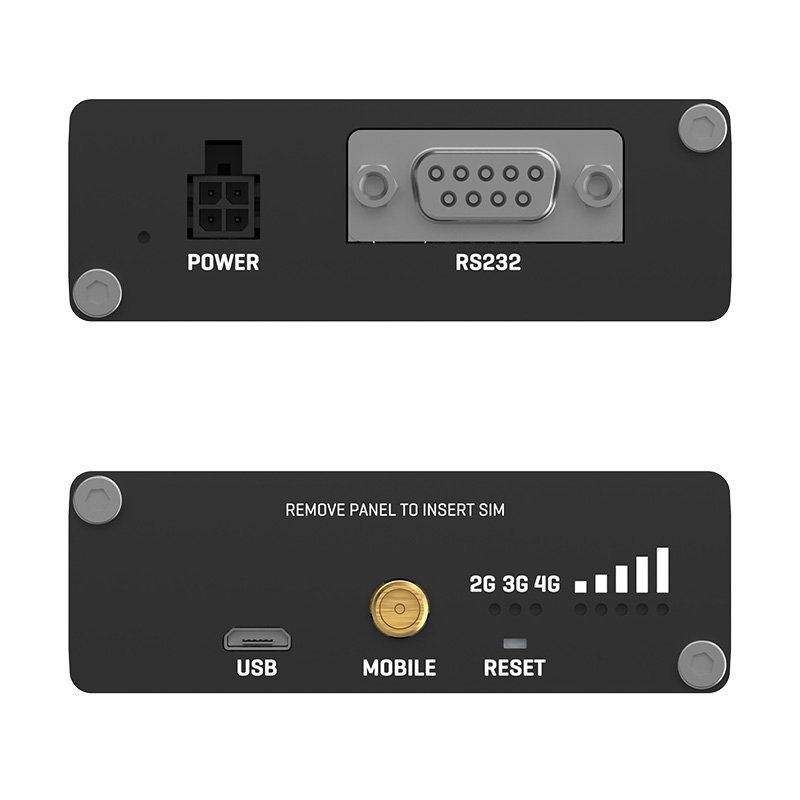

• 1 × RS232 interface for serial communication
• 2 × configurable input / output
• Technology LTE (Cat 1)
• Micro-USB port for virtual network interface
• Wide range of power supply voltages (9-30 V)

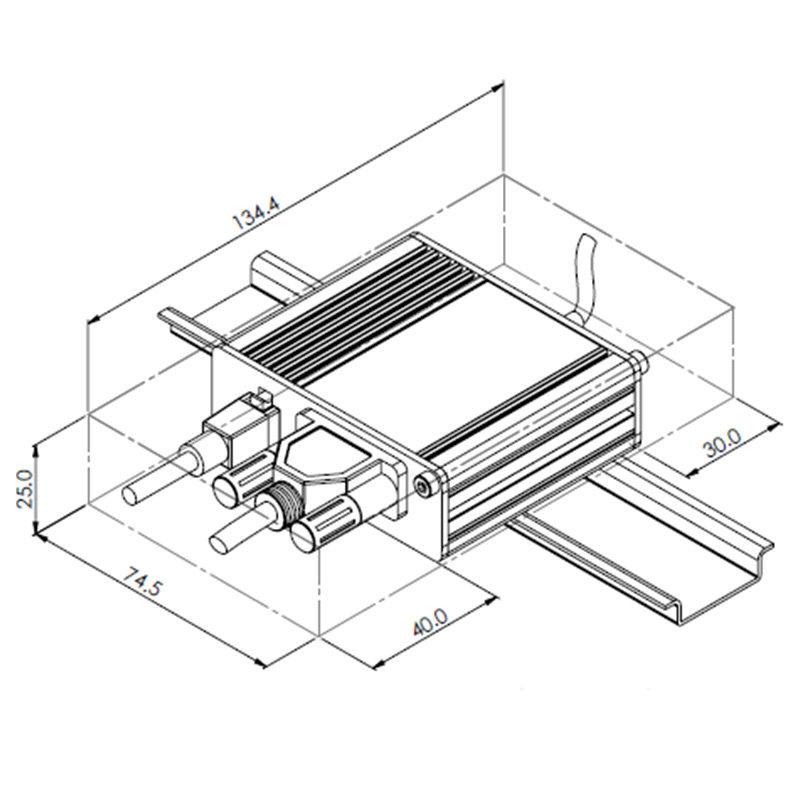

• Compact dimensions
• Degree of protection IP30
• SMS control, Firewall, OpenVPN, IPsec, FOTA, SSH, MQTT, JSON-RPC, Modbus, Teltonika RMS
• RutOS - easy to use, secure and feature rich operating system
Standard package contains:
• TeltonikaTRB142
• 4.5 W PSU
• 1 x LTE antenna (magnetic mount, SMA male, 3 m cable)
• Micro-USB cable (0.8 m)
• 1 x hex key
• QSG (Quick Start Guide)
• RMS flyer
For this router Teltonika TRB142 you can buy the Teltonika BAT120 backup power supply, which takes over the power supply of the router for up to 6 hours in the event of a power failure.
Try RMS for free by clicking on this link to register your free 30-day demo account!
LINK: https://rms.teltonika.lt/
We recommend using the complete user manual and documents for configuration, official materials can be found here.
More information can be found in the attached datasheet and quick manual.
Quick Start Guide Video
The Quick Start Guide video guides you step-by-step through setting up the router from unpacking the box, inserting the SIM card, connecting the antennas, and logging into the administration.
