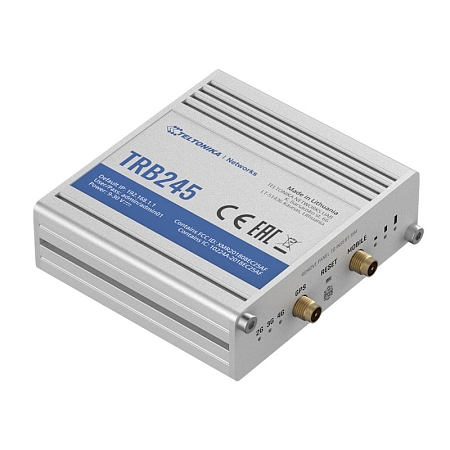

Teltonika Gateway TRB245
Teltonika TRB245 is a cellular gateway designed for industrial applications.
It provides a reliable Internet connection using LTE Cat.4 mobile technology, which supports speeds of up to 150 Mbps. It is also compatible with 2G (maximum transfer rate up to 236.8 kbps) and 3G (maximum transfer rate up to 42 Mbps) technologies. The great advantage of this device is the combination of Ethernet and serial communication RS232 / RS485, which allow easy integration into industrial projects. Dual-SIM provides backup in the event of a failure of one of the Internet Service Providers (ISPs).

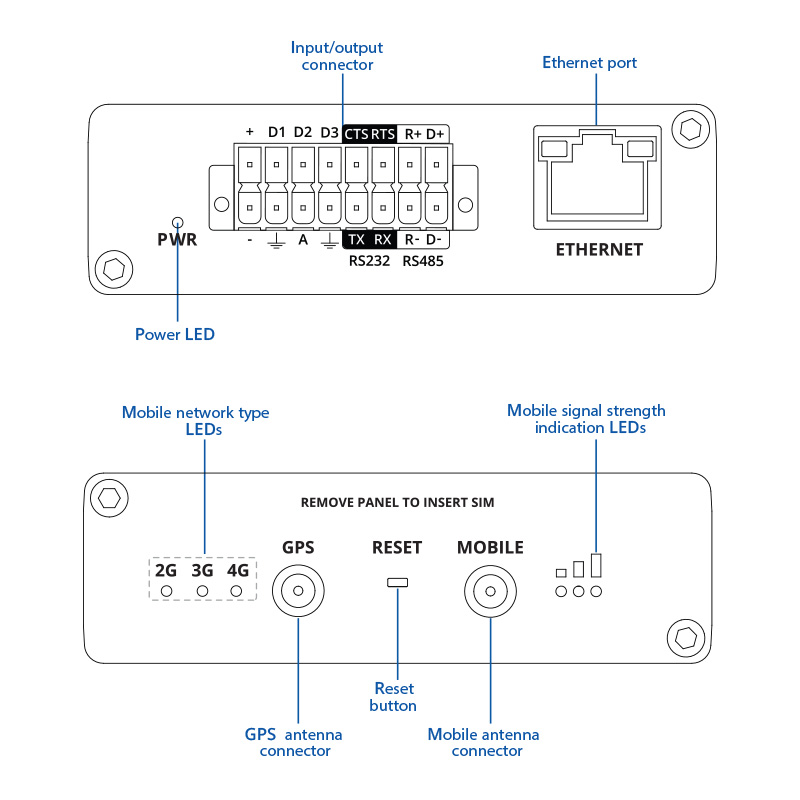

As for other connector equipment, 1x SMA (LTE), 1x SMA (GNSS) and power connector are available. Two SIM slots are also included.
Data security is provided by a wide range of software functions, such as SMS control, firewall, OpenVPN, IPSec, RMS. It includes also widely used protocols, such as TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP, Telnet.
This industrial device is equipped with the RutOS system. It is an operating system based on Linux OpenWRT, which is a big plus for the selection of Teltonika routers.
• Industrial LTE Cat 4 modem
• Support for 2G and 3G technologies
• Contains two SIM slots
• Operating system: RutOS (OpenWrt based Linux OS)
• Interface: serial RS-232, RS-485, Ethernet (10/100 Mbps), 2 x SMA male
• Gateway TRB245
• Power supply
• 1 x LTE antenna (swivel, SMA male)
• 1x GNSS antenna (adhesive, SMA male, 3 m cable)
• 16 pin terminal block
• 1 x hex key
• 1.5 m Ethernet cable
• Quick Start Guide (QSG)
For this router TRB245 you can buy the Teltonika BAT120 backup power supply, which takes over the power supply of the router for up to 6 hours in the event of a power failure and combo antenna LTE/GNSS/WiFi.
Try RMS for free by clicking on this link to register your free 30-day demo account!
We recommend using the complete user manual and documents for configuration, official materials can be found here.
More information can be found in the attached datasheet and quick manual.
